Evolutionary Developmental Biology (Evo-Devo)

Overview

Evolutionary developmental biology (evo-devo) addresses a question the preceding pages in this section largely set aside: not just that body plans change over evolutionary time, but how a developmental program can be altered to produce a substantially different adult form. Its central, field-defining discovery is that the genes controlling development (the “genetic toolkit”) are far more deeply conserved across even distantly related animal phyla than 20th-century biologists expected — Animal Anatomy’s Body Plans page already introduced one specific instance of this (Hox genes patterning segmentation identically across annelids, arthropods, and vertebrates); this page covers the broader toolkit and, more importantly, the recurring evo-devo insight that most macroevolutionary change comes from altering when, where, and how much these conserved genes are expressed, rather than from evolving fundamentally new genes.

Key Concepts

Hox Genes and Colinearity

Hox genes are a conserved family of homeobox-containing transcription factor genes that specify positional identity along an embryo’s anterior-posterior axis, expressed in overlapping domains such that each body region receives a distinct combination of active Hox genes (“the Hox code”) that determines what structures develop there. A striking, exam-relevant structural feature is colinearity: Hox genes are physically arranged on the chromosome in the same order as the body regions they pattern, and are also expressed in roughly that same anterior-to-posterior temporal sequence during development — a direct, physical correspondence between genome organization and body organization that has no obvious a priori necessity and is itself considered strong evidence of deep shared ancestry across bilaterian animals. Homeotic mutations — a Hox gene expressed in the wrong body segment — produce one structure replacing another in its entirety rather than a generic malformation, dramatically demonstrating that Hox genes specify identity, not the physical structure itself: the classic Antennapedia mutation in Drosophila causes a fully formed leg to develop in place of an antenna on the head, because the Antennapedia Hox gene is misexpressed in the antennal segment, and the segment’s existing structure-building machinery is redirected to build the structure normally specified for a different segment.

Source: Griffiths et al. 1996 (credit in image)

Heterochrony

Heterochrony is evolutionary change in the relative timing or rate of a developmental process, altering adult morphology without necessarily requiring any change to which genes are used — only when or how long they act:

• Paedomorphosis — the adult form of a descendant retains traits that were only juvenile/larval in the ancestor, effectively “freezing” development at an earlier relative stage. Axolotls (Ambystoma mexicanum) are the standard example: adult axolotls retain external gills and an aquatic tail fin (ancestrally larval salamander traits) and become reproductively mature without ever undergoing the metamorphosis to a terrestrial adult form that close salamander relatives complete — a heterochronic shift (specifically, a failure to initiate metamorphic timing) rather than any change to the larval developmental program itself.

Source: ResearchGate, fig. 1, “Metamorphosis and differences in the heart structures between paedomorphic and metamorphic…”

• Peramorphosis — the reverse pattern: development extends beyond the ancestral adult endpoint, producing descendant adults with traits more exaggerated than the ancestral adult condition (e.g. further-extended growth producing larger antlers or body size than an ancestral stopping point would have allowed).

Heterochrony is mechanistically significant because it demonstrates that a comparatively simple regulatory change (shifting when an existing developmental program starts, stops, or how fast it runs) can produce a strikingly different adult morphology without inventing any new gene or structure — a much more mutationally accessible route to morphological change than evolving a wholly novel developmental pathway from scratch.

Modularity and Co-option

Animal body plans are built from developmentally semi-independent modules (repeated or separable units — individual limbs, individual vertebrae, individual eye components) whose development is controlled by shared regulatory genes but which can be modified somewhat independently of each other, which matters evolutionarily because it allows selection to modify one module (a single pair of limbs, a single tooth type) without being forced to simultaneously alter every other module built from the same underlying genetic toolkit. Gene co-option (or exaptation at the genetic level — see the general concept in Natural Selection: Modes & Fitness) describes an existing regulatory gene or pathway being redeployed for a new developmental purpose in a new context: the Pax6 gene, for example, is deeply conserved as a master regulator of eye development across bilaterians as different as fruit flies and mice (a Pax6 ortholog from either species can trigger ectopic eye development when experimentally expressed in the other), strong evidence that a single ancestral light-sensing regulatory gene was repeatedly co-opted and elaborated rather than eyes evolving their master regulatory control independently many times over despite the eye’s final structure (compound vs. camera-type) differing dramatically between the two lineages.

(No Pax6 cross-species eye-induction image — none was found; the concept above remains text-only on this page.)

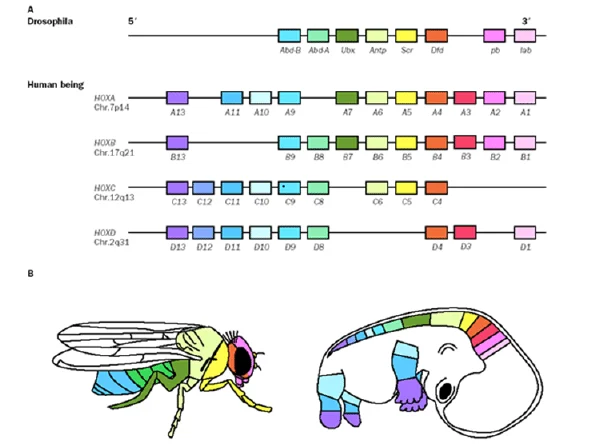

Source: ResearchGate, fig. 2, “Hox Spatial and Functional Collinearity: The four human and one Drosophila Hox complexes…”

Regulatory vs. Coding Change

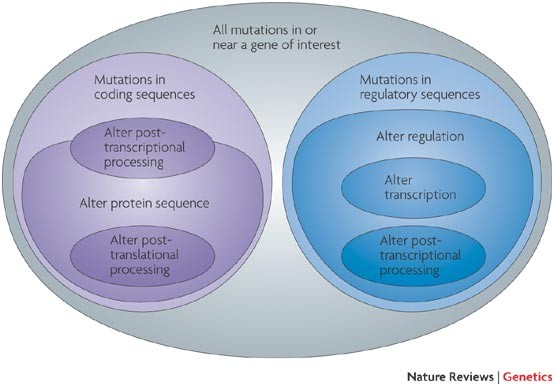

A central, unifying evo-devo argument, applicable to all three concepts above, is that changes to cis-regulatory DNA (non-coding sequence controlling when/where/how much a gene is transcribed, e.g. enhancers) are a more common and evolutionarily flexible source of morphological novelty than changes to a gene’s protein-coding sequence itself, because a single conserved toolkit gene (Hox genes, Pax6) is typically reused in many different developmental contexts across the body — a coding change affecting the protein itself would disrupt all of those contexts simultaneously (a strongly deleterious, pleiotropic cost), while a regulatory change can alter the gene’s deployment in one specific context (one body segment, one tissue) while leaving its function everywhere else untouched. This is a major reason the same conserved toolkit genes can be reused repeatedly across evolutionary history to build such different body plans — vertebrate limb diversity, insect wing-pattern variation, and stickleback armor-plate loss have all been traced to regulatory-region changes near otherwise-conserved genes rather than to changes in the genes’ protein products.

Source: Wray (2007), Nature Reviews Genetics, “The evolutionary significance of cis-regulatory mutations” (doi nrg2063)

Comparative Structures

Common Exam Questions

• “Explain what Hox gene colinearity refers to, and why it is considered evidence of deep shared ancestry across bilaterian animals.”
• “Explain why a homeotic mutation like Antennapedia produces a complete, well-formed structure in the wrong location rather than a generic deformity.”
• “Distinguish paedomorphosis from peramorphosis, using the axolotl as an example of one of the two.”
• “Explain what the cross-species Pax6 eye-induction experiment demonstrates about the evolutionary history of eyes, despite the structural differences between compound and camera-type eyes.”
• “Explain why a regulatory (cis-regulatory) mutation is generally less likely to be strongly deleterious than a coding mutation in the same conserved toolkit gene.”
• “Explain how modularity in body-plan development allows selection to modify one structure (e.g. a single limb pair) without necessarily affecting other structures built from the same genetic toolkit.”

Visual Reference

Interactive

• Hox gene colinearity map (interactive SVG/JS, no new library) — a clickable diagram of a Hox gene cluster on a chromosome, where clicking each gene highlights the corresponding body region it patterns in a paired embryo diagram, directly demonstrating the physical-to-positional correspondence.

• Heterochrony timing slider (Plotly) — an ancestral developmental-rate curve for a trait plotted against age, with a draggable “onset/offset” slider that the user shifts earlier or later, showing the resulting paedomorphic or peramorphic adult trait value predicted at the (unchanged) ancestral adult time-point.

Static (placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here)

Practice Problems

1. A researcher discovers a fly mutant in which fully formed wings develop where halteres (small balancing organs) normally form on a more posterior segment. Explain what type of mutation this is and what it demonstrates about Hox gene function.
2. Explain why the axolotl’s retention of external gills into sexual maturity is classified as heterochrony rather than as a simple structural loss of a metamorphosis-related gene.
3. A gene’s protein sequence is virtually identical between two very distantly related animal phyla, but the gene is expressed in a different set of tissues in each. Explain, using the concept of cis-regulatory evolution, why this pattern is common for deeply conserved developmental toolkit genes.
4. Explain why mouse Pax6 being able to induce eye formation when expressed in a fly is considered stronger evidence of shared ancestry than simply noting that both species have eyes.
5. Propose why a mutation directly altering a Hox gene’s protein-coding sequence (used in patterning many different segments) would generally be more strongly selected against than a mutation altering that same gene’s regulatory region controlling expression in just one segment.
