Root Anatomy

Overview

The root is the first organ built almost entirely for absorption and anchorage rather than photosynthesis, and its internal arrangement — a central vascular cylinder wrapped by cortex, rather than the scattered or peripheral vascular arrangement seen in stems — reflects that division of labor directly. This page covers root structure at the tissue level; the meristem that generates it (the root apical meristem and its three growth zones) is covered on Plant Tissue Systems.

Key Concepts

Root Systems

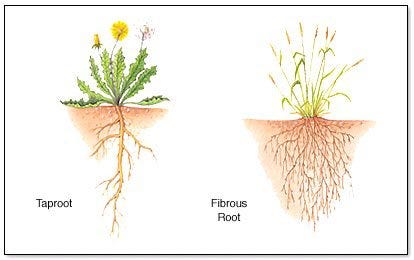

Roots occur in two structural patterns: a taproot system (one dominant primary root, derived directly from the embryonic radicle, with thinner lateral roots branching from it — typical of dicots, and often modified for storage, e.g. carrot, beet) and a fibrous root system (many similarly-sized roots, none dominant, typically arising adventitiously from the stem base rather than from a single primary root — typical of monocots, e.g. grasses). Fibrous systems occupy shallow soil more densely (better for erosion control and rapid water uptake near the surface); taproot systems reach deeper soil water and store more reserve tissue in a single structure.

Source: Biology Notes on Medium (medium.com/@biologynotes)

Epidermis and Root Hairs

The root epidermis (epiblema or rhizodermis) lacks the thick cuticle typical of shoot epidermis, since restricting water movement here would defeat the root’s absorptive function. In the root hair zone (part of the zone of maturation, see Plant Tissue Systems), individual epidermal cells extend into tubular root hairs — not separate cells, but single-cell outgrowths — dramatically increasing absorptive surface area per unit root length; root hairs are short-lived, continuously produced closer to the tip as older ones die.

Cortex

Internal to the epidermis, the cortex is mostly parenchyma, often with substantial intercellular air space (facilitating gas exchange to root tissue that has no chloroplasts of its own to generate oxygen), and frequently stores starch. In many roots the outermost cortical layer, immediately beneath the epidermis, is structurally distinct enough to be named separately: the exodermis (in roots that develop one), a layer capable of depositing suberin similarly to the endodermis described below, providing a secondary line of control over apoplastic movement at the cortex’s outer boundary.

Endodermis and the Casparian Strip

The innermost layer of the cortex, the endodermis, is a single layer of tightly packed cells forming a structural checkpoint around the vascular cylinder. Each endodermal cell deposits a band of suberin (a waterproof, waxy substance) in its radial and transverse walls — the Casparian strip — running around the cell like a belt. Because the Casparian strip fuses with the adjacent cell’s strip at every wall junction, it blocks the apoplast pathway (movement through cell walls and intercellular spaces) completely at this one layer: water and dissolved minerals travelling apoplastically from the epidermis inward are forced to cross a plasma membrane and enter the symplast (cell-to-cell via cytoplasm and plasmodesmata, see Plant Tissue Systems) at the endodermis, giving the plant a single, controllable membrane-transport checkpoint on everything entering the vascular cylinder — the structural basis for selective mineral uptake and the exclusion of larger or unwanted solutes before they reach the xylem. Scattered passage cells (endodermal cells that stay thin-walled, without a fully developed Casparian strip, typically opposite the xylem poles) allow continued water movement in roots where the endodermis has otherwise matured further (deposited a suberin lamella over the entire wall, or even a further lignified/thickened wall) with age.

Source: biocyclopedia.com

Pericycle and Lateral Root Origin

Immediately internal to the endodermis, the pericycle is a layer (one or more cells thick) that, unlike most other mature root tissue, retains meristematic potential. Lateral roots originate from pericycle cell divisions — meaning new roots arise from a deep-seated internal tissue layer and must grow outward through the cortex and epidermis to emerge, an endogenous origin. This is a specific, testable structural contrast with lateral shoot branches, which arise exogenously from axillary buds already at the stem surface (see Stem Anatomy) — the same “lateral organ” concept, opposite tissue origin, in root versus shoot.

Source: Wikipedia, “Lateral root” (en.wikipedia.org/wiki/Lateral_root)

The Vascular Cylinder (Stele)

At the center of the root, the stele (vascular cylinder) shows a fundamentally different xylem/phloem arrangement than the stem, and one that differs further between monocots and dicots:

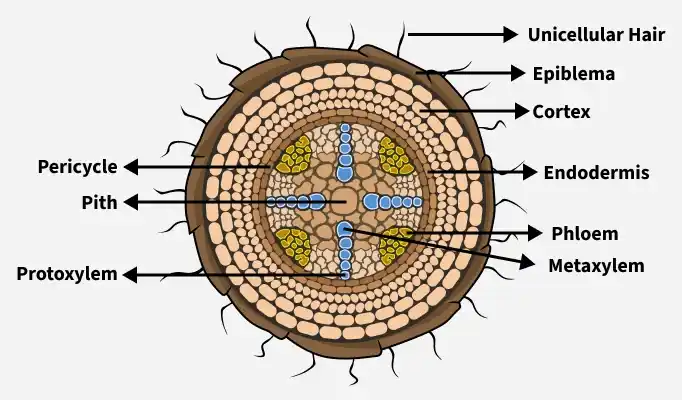

• Dicot roots — xylem forms a solid, star-shaped core (an actinostele) with a small number of arms (diarch = 2 arms, triarch = 3, tetrarch = 4, etc., depending on species), phloem occupying the bays between adjacent xylem arms. Pith is typically absent or minimal — the xylem core occupies most of the stele’s center.

Source: GeeksforGeeks (geeksforgeeks.org)

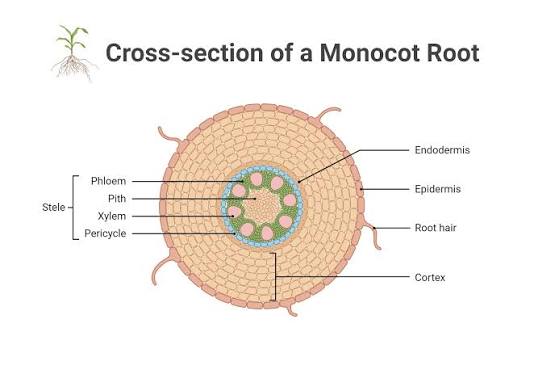

• Monocot roots — xylem and phloem form an alternating ring around a large, prominent central pith (usually parenchyma, sometimes with sclerenchyma reinforcement), rather than xylem filling the center — described further in comparison on Monocot vs Dicot Comparative Anatomy. Monocot roots also typically show more numerous xylem poles (polyarch) than dicot roots.

Source: BioRender template gallery (biorender.com)

In both cases root xylem matures exarch (the earliest-matured protoxylem lies toward the outside, nearest the pericycle, with metaxylem maturing centripetally, toward the center) — the opposite maturation direction from the stem, where xylem matures endarch (protoxylem innermost). This exarch/endarch contrast is a specific, frequently tested root-vs-stem structural distinction independent of the monocot/dicot axis.

Comparative Structures

Common Exam Questions

• “Explain how the Casparian strip forces water and minerals from the apoplast into the symplast pathway, and why this is functionally significant for selective uptake.”
• “Explain why lateral roots are described as having an endogenous origin, contrasting this with the origin of lateral shoot branches.”
• “Distinguish a diarch from a polyarch root stele, and identify which is characteristic of monocots.”
• “Explain the difference between exarch and endarch xylem maturation, and state which is characteristic of roots versus stems.”
• “Given a root cross-section showing a large central pith surrounded by an alternating ring of xylem and phloem, identify whether the plant is a monocot or dicot and justify your answer.”

Visual Reference

Interactive

• Casparian strip transport pathway simulator (click-through SVG/JS, no new library) — a root cross-section showing epidermis through stele; clicking “apoplast” or “symplast” traces a highlighted path for a water molecule from soil to xylem, with the apoplast path visibly blocked and rerouted through a membrane at the endodermis, making the forced apoplast-to-symplast switch visible rather than stated.

• Monocot vs. dicot root stele toggle (click-through SVG/JS, no new library) — a single diagram frame that toggles between a dicot actinostele (solid xylem star, no pith) and a monocot stele (xylem/phloem ring, central pith), so the structural contrast is seen as a direct swap rather than two separate images.

(Static images are placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here. No usable image was found for the root hair zone longitudinal section — dropped from this pass.)

Practice Problems

1. Explain why the endodermis, rather than the epidermis or cortex, is the site of the Casparian strip.
2. A cross-section shows xylem forming four solid arms meeting at a central point, with phloem between the arms and no pith. Identify the stele type and whether the plant is likely a monocot or dicot.
3. Explain why root hairs are considered extensions of single epidermal cells rather than separate multicellular structures.
4. Trace a mineral ion from the soil solution to the xylem, naming every tissue layer it crosses and identifying where it is forced from the apoplast into the symplast.
5. Explain why lateral roots must grow through the cortex and epidermis to emerge, referencing where in the root they actually originate.
