Human Sensory Organs

Overview

The eye and ear are, structurally, extensions of the nervous system covered on the previous page — both convert a physical stimulus into a neural signal using highly specialized, purpose-built tissue architecture. Because both organs reward (and are tested at) a level of structural detail beyond a single labeled diagram, they’re given a dedicated page here.

Key Concepts

Eye: Three Tunics

The eyeball wall has three concentric layers:

• Fibrous layer (outer) — the opaque, tough sclera (protective “white of the eye,” continuous posteriorly with the optic nerve’s dural sheath) becomes the transparent, avascular cornea anteriorly — the single greatest contributor to the eye’s total refractive (light-bending) power, more than the lens, because the largest refractive index change in the entire optical path occurs at the air-cornea interface.
• Vascular layer (uvea, middle) — the choroid (pigmented, blood-vessel-rich, nourishes the outer retina and absorbs stray light to reduce internal scatter), continuous anteriorly with the ciliary body (a ring of smooth muscle and epithelium producing aqueous humor and, via suspensory zonule fibers, controlling lens shape — see accommodation below) and the iris (pigmented smooth muscle, its central aperture the pupil; contains both circular fibers, parasympathetically constricting the pupil, and radial fibers, sympathetically dilating it).
• Inner layer — the retina, itself multilayered (see below).

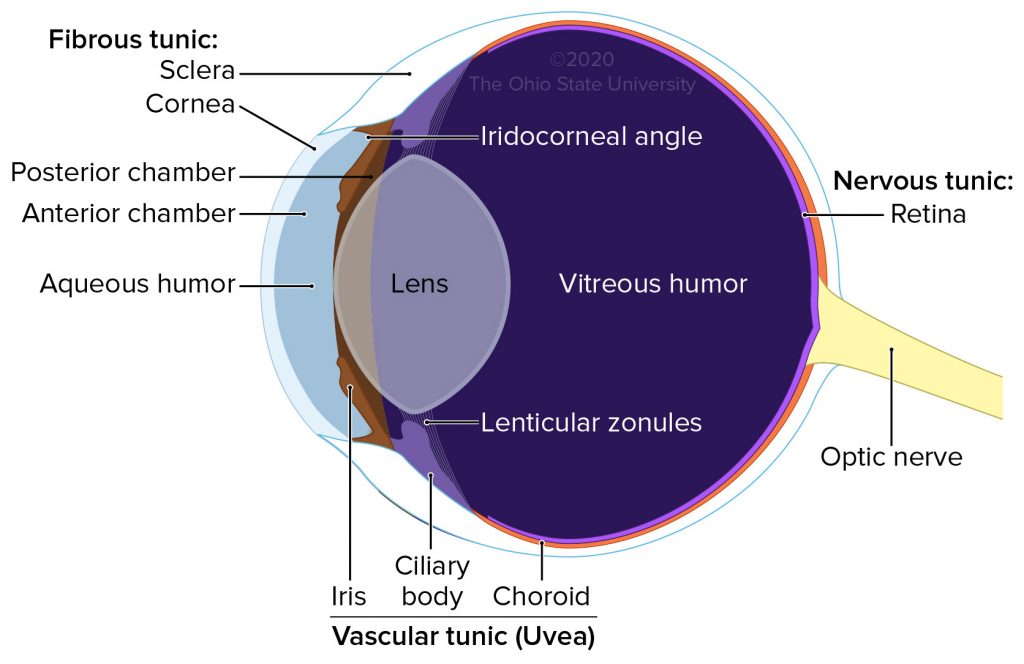

Source: The Ohio State University (Ohio State Pressbooks).

Retinal Structure

The retina is structurally “inverted” relative to what intuition suggests: light must pass through several inner retinal layers (ganglion cells, then bipolar cells) before reaching the photoreceptor layer at the back, adjacent to the pigmented epithelium and choroid. The functional signal path runs in the opposite direction to light: photoreceptors (rods and cones) synapse onto bipolar cells, which synapse onto ganglion cells, whose axons converge and run across the retinal surface before bundling into the optic nerve — the point of convergence, the optic disc, contains no photoreceptors, the direct anatomical basis of the blind spot. Horizontal cells and amacrine cells provide lateral connections within the retina, shaping the signal (e.g. contrast enhancement) before it ever leaves the eye.

Two photoreceptor types, with a direct structure-function distribution pattern: rods (more numerous, ~120 million, distributed across the peripheral retina, contain the single pigment rhodopsin, highly sensitive — good for dim-light/monochrome vision but low visual acuity since many rods converge onto a single bipolar/ganglion cell) and cones (~6 million, three types by peak wavelength sensitivity — enabling color vision via the relative activation across the three types, concentrated at the fovea centralis, within the macula lutea, where a much lower convergence ratio, approaching 1:1 in the very center, produces the eye’s point of sharpest vision).

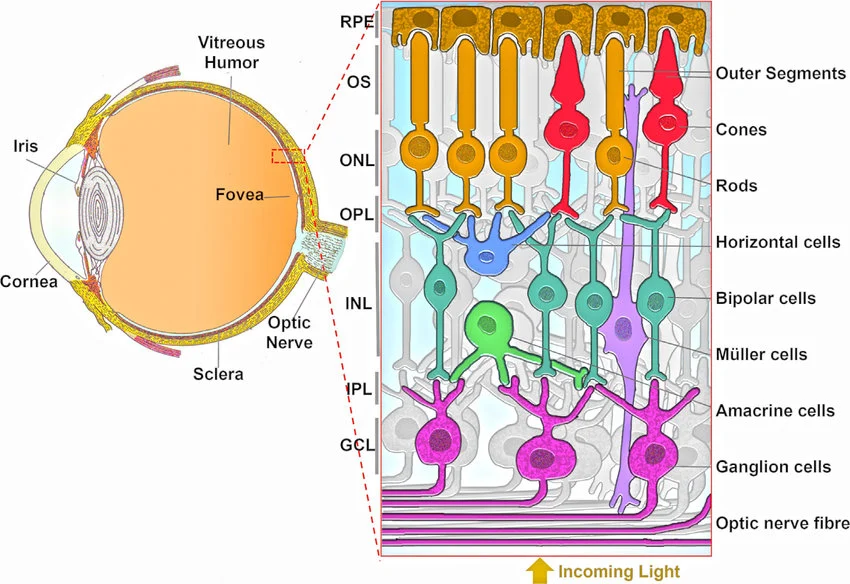

Source: user-sourced figure. Exact match — directly visualizes the light path running opposite to the neural signal path described in the text.

Accommodation

Accommodation is the structural mechanism by which the eye adjusts focus for near vs. far objects, worth stating mechanistically rather than as a single fact: the lens is elastic and, left completely unconstrained, would adopt a more rounded (higher refractive power) shape; at rest (viewing distant objects) the ciliary muscle is relaxed, the ciliary body’s diameter is at its widest, and zonule fibers are taut, pulling the lens flatter (lower power). For near vision, the ciliary muscle contracts, reducing the ciliary body’s effective diameter, releasing tension on the zonule fibers, and allowing the lens to round up (higher power) via its own elasticity — meaning ciliary muscle contraction, somewhat counterintuitively, is what enables near focus, not far focus.

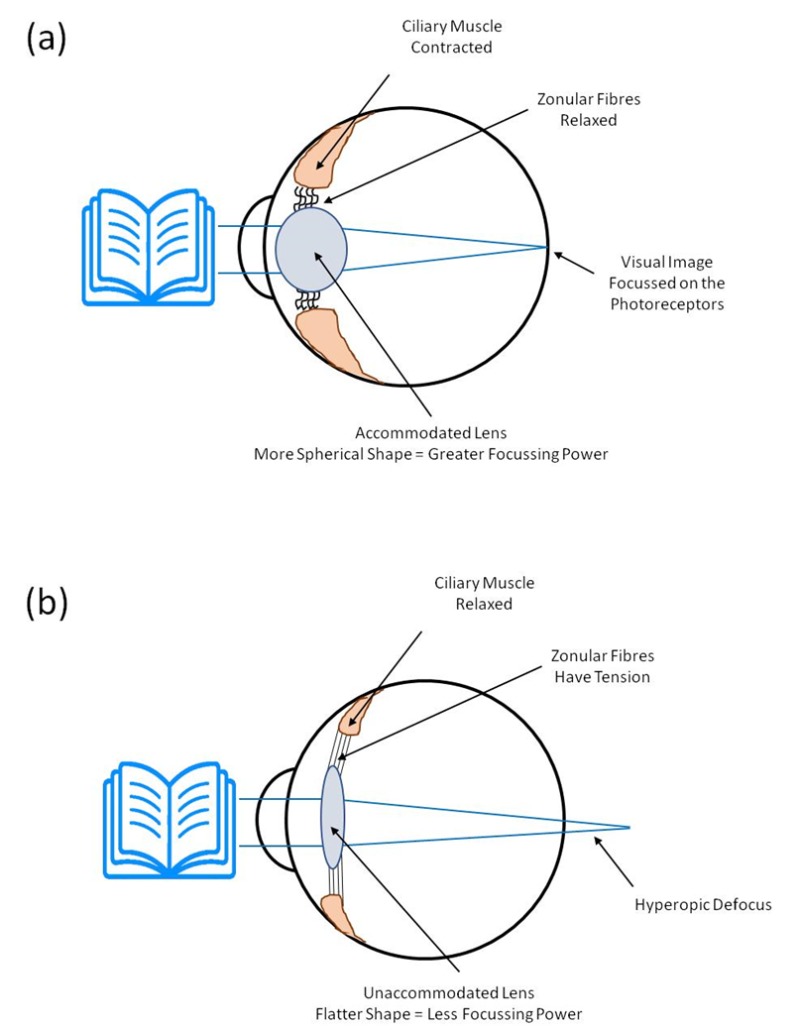

Source: user-sourced (originally via an NCBI Bookshelf figure). Exact match — directly visualizes the counterintuitive contraction-enables-near-vision mechanism described in the text.

Extraocular Muscles and Accessory Structures

Six extraocular muscles move each eye: four rectus muscles (superior, inferior, medial, lateral — named for their approach direction, producing the corresponding primary movements) and two oblique muscles (superior, inferior — producing rotational and vertical movement components, since they approach the globe at an angle). These are innervated by cranial nerves III, IV, and VI (see Human Nervous System). The lacrimal apparatus (lacrimal gland, superolateral to the eye, producing tear fluid; drained medially via the lacrimal puncta/canaliculi into the nasolacrimal duct, emptying into the nasal cavity) keeps the cornea moist and provides an antimicrobial/mechanical clearing function.

Light path, tying the structures above together in sequence: cornea → aqueous humor (anterior chamber) → pupil → lens → vitreous humor (the gel filling the large posterior chamber, maintaining the eyeball’s shape) → retina.

Ear: Outer, Middle, and Inner Regions

• Outer ear — the pinna (collects/funnels sound) and the external auditory canal, terminating at the tympanic membrane (eardrum), which vibrates in response to sound pressure waves.
• Middle ear — an air-filled cavity within the temporal bone, containing the three smallest bones in the body, the ossicles — malleus (attached to the tympanic membrane), incus, stapes (its footplate sits in the oval window) — connected in series and mechanically amplifying vibration (via a lever action and, more significantly, the large area-ratio between the tympanic membrane and the much smaller oval window, concentrating force) before transmitting it to the fluid-filled inner ear. The Eustachian (auditory) tube connects the middle ear to the nasopharynx, equalizing air pressure across the tympanic membrane. Two small muscles (tensor tympani, stapedius) can reflexively stiffen the ossicular chain in response to loud sound, damping transmission.
• Inner ear — a fluid-filled system embedded in temporal bone, comprising the cochlea (hearing) and the vestibular apparatus (balance), both housed within a bony labyrinth lined by a membranous labyrinth; the two labyrinths are separated by perilymph (outer, similar in composition to CSF/extracellular fluid) while the membranous labyrinth itself contains endolymph (inner, unusually high in K⁺, more like intracellular fluid) — this ionic difference is directly relevant to how hair cells (below) generate a signal.

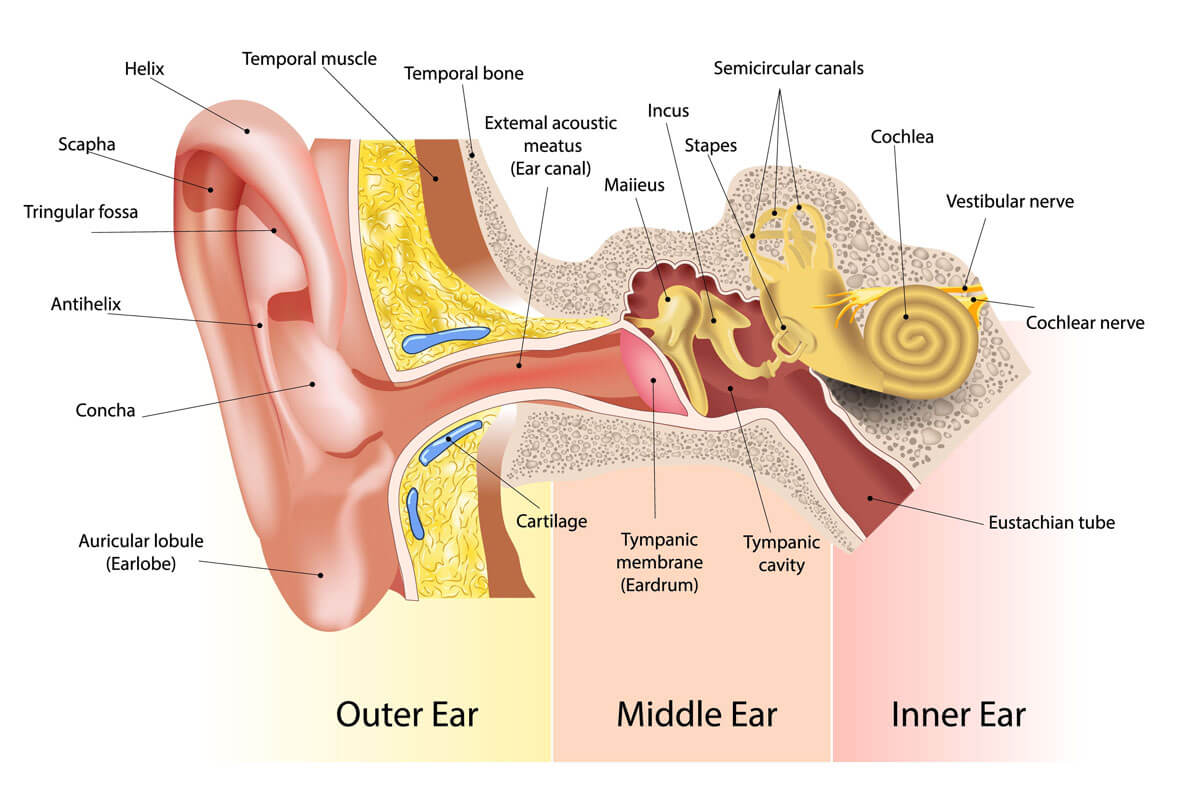

Source: user-sourced figure

Cochlear Structure

The cochlea is a coiled tube divided lengthwise into three fluid-filled channels: scala vestibuli and scala tympani (both perilymph, connected at the cochlear apex, the helicotrema) flank the central scala media (cochlear duct) (endolymph). Vibration entering at the oval window travels through the scala vestibuli, deflects the basilar membrane (which separates the scala media from the scala tympani, floor of the cochlear duct), and dissipates via the round window (a second membrane-covered opening that flexes outward to relieve pressure, since fluid is incompressible). Sitting on the basilar membrane, the organ of Corti contains rows of hair cells — mechanoreceptors whose apical stereocilia are embedded in or contact an overlying gelatinous tectorial membrane; basilar membrane vibration shears the stereocilia against the tectorial membrane, mechanically opening ion channels and depolarizing the hair cell, which then synapses onto afferent fibers of the cochlear branch of cranial nerve VIII. The basilar membrane’s width and stiffness vary continuously along its length (narrow/stiff near the oval window, wide/flexible near the helicotrema), so different frequencies produce a maximal deflection at different positions — a tonotopic map that is the direct structural basis of pitch discrimination.

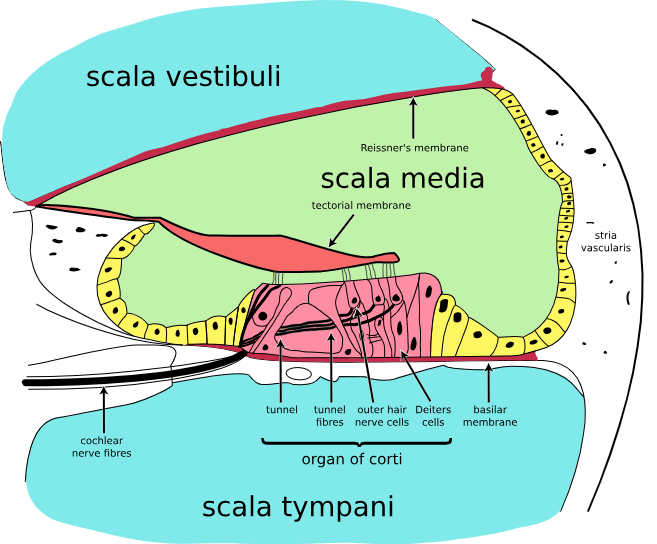

Source: Wikimedia Commons (Cochlea-crosssection.svg), CC BY-SA 3.0, creator Quantum7

Vestibular Structure

The vestibular apparatus detects head position and movement using the same hair-cell mechanoreceptor principle as the cochlea, in two structurally distinct components: three semicircular canals, oriented in three roughly perpendicular planes, each with a swelling (ampulla) at its base containing a crista ampullaris — a hair-cell patch capped by a gelatinous cupula that is deflected by inertial lag in the endolymph during rotational (angular) acceleration, detecting head rotation in that canal’s plane; and two otolith organs, the utricle and saccule, each containing a macula — a hair-cell patch overlaid by a gelatinous layer embedded with dense calcium carbonate crystals (otoliths/otoconia), whose inertial lag during linear acceleration or in response to gravity shears the underlying hair cells, detecting linear acceleration and static head tilt.

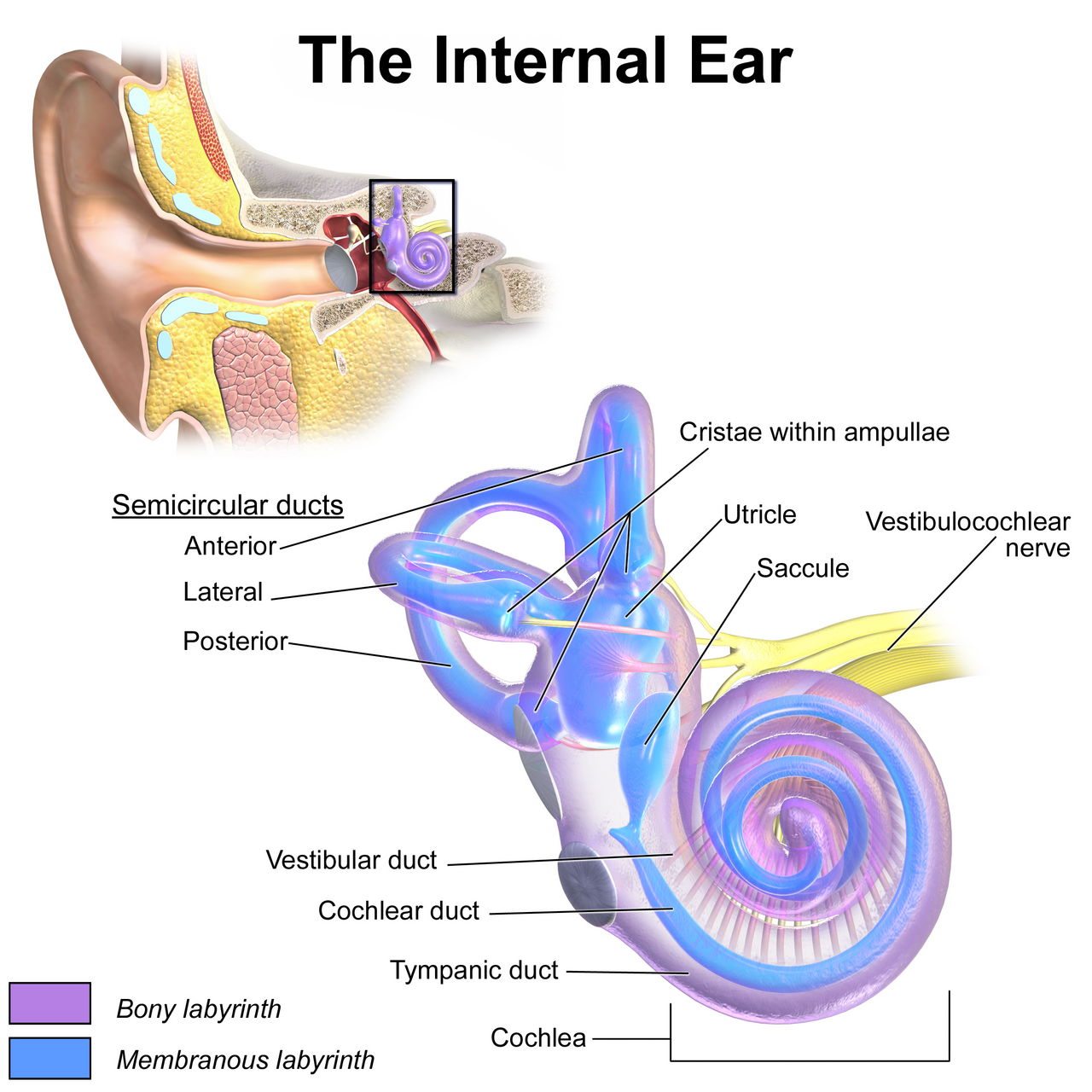

Source: Wikipedia — Saccule (Wikimedia Commons; check the file’s own page there for exact attribution wording before reuse elsewhere).

Comparative Structures

Photoreceptor and mechanoreceptor hair-cell structure are broadly conserved across vertebrates, but eye and ear gross structure vary substantially with habitat and lifestyle — e.g. the flattened, strongly refractive fish lens adapted for an underwater optical environment, or the more limited middle-ear ossicle count in non-mammalian vertebrates (a single ossicle, the stapes, rather than three — see the Reptile & Bird Anatomy and Mammalian Comparative Anatomy pages for the evolutionary/structural link between jaw-bone reduction and the appearance of the mammalian malleus and incus).

Common Exam Questions

• “Explain why the retina is described as ‘inverted,’ and trace the path light takes through retinal layers before reaching a photoreceptor.”
• “Distinguish rods from cones by distribution, convergence ratio, and the specific visual capability each supports.”
• “Explain, mechanistically, why ciliary muscle contraction — not relaxation — enables near vision.”
• “Trace a sound vibration from the tympanic membrane to hair cell depolarization, naming every structure it passes through in order.”
• “Explain how the basilar membrane’s structural properties produce a tonotopic map, and what functional capability this provides.”
• “Distinguish the semicircular canals from the otolith organs by the specific type of head movement each detects.”

Visual Reference

Interactive

(Implemented inline above: the accommodation simulator sits directly below the accommodation mechanism image, and the cochlear tonotopy explorer sits directly below the cochlear cross-section image.)

Static

(Static images are placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here.)

Practice Problems

1. Name the three tunics of the eyeball from outer to inner and state the primary function of each.
2. A patient has a blind spot corresponding to a specific point in their visual field with no photoreceptor deficit elsewhere. Explain the structural basis of this finding.
3. Explain why the middle ear ossicles are necessary for effective hearing, referencing the area-ratio between the tympanic membrane and the oval window.
4. A rotational head movement is detected by the vestibular apparatus. Name the specific structure responsible and describe how endolymph movement leads to hair cell activation.
5. Compare the number and structural origin of middle-ear ossicles in mammals versus non-mammalian vertebrates.
