Muscle Physiology

Overview

The Human Muscular System anatomy page covers sarcomere and neuromuscular junction structure; this page covers the mechanism that converts a motor neuron’s action potential into an actual shortening contraction, and the metabolic systems that keep that contraction supplied with ATP.

Key Concepts

Excitation-Contraction Coupling

The sequence linking a neural signal to mechanical contraction is a single continuous chain, not two separate events:

    graph TD;
    A["Motor neuron action potential reaches NMJ"] --> B["ACh released, binds nicotinic receptors on sarcolemma"];
    B --> C["Sarcolemma depolarizes; signal spreads down T-tubules"];
    C --> D["T-tubule voltage sensors trigger Ca2+ release from sarcoplasmic reticulum"];
    D --> E["Ca2+ binds troponin on thin filament"];
    E --> F["Tropomyosin shifts, exposing myosin-binding sites on actin"];
    F --> G["Cross-bridge cycling (sliding filament mechanism)"];

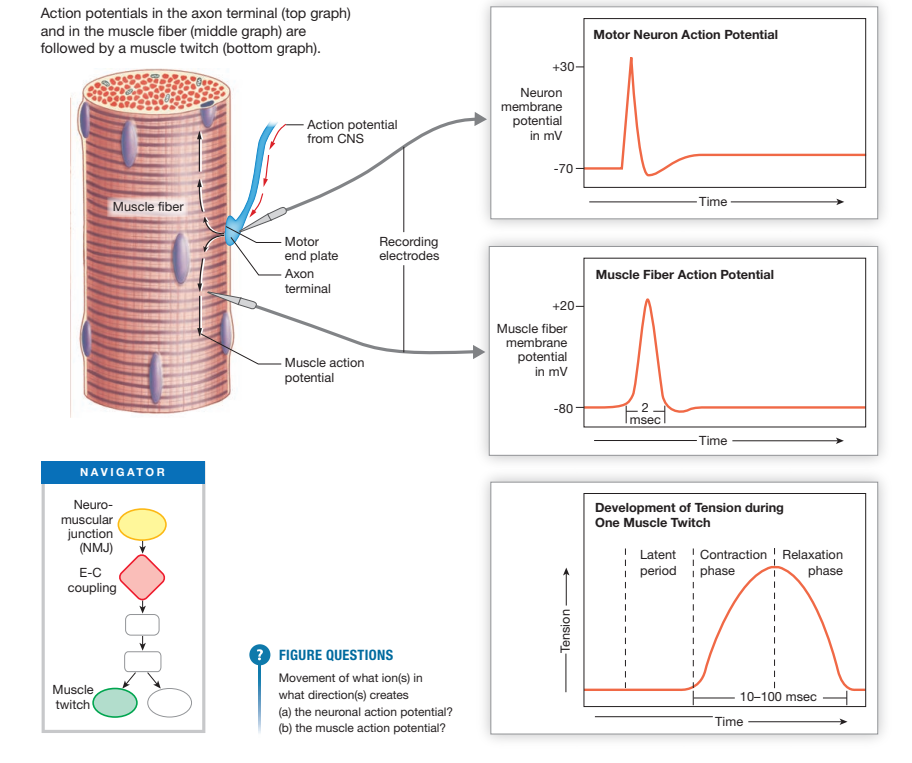

At the neuromuscular junction, presynaptic acetylcholine (ACh) release (mechanistically identical to the chemical synapse mechanism on the Nervous System Physiology page) binds nicotinic receptors on the muscle fiber’s motor end plate, depolarizing the sarcolemma. This depolarization travels inward along T-tubules (deep membrane invaginations positioned at every sarcomere, ensuring the signal reaches the fiber’s interior essentially simultaneously rather than only from the surface inward), where voltage sensors mechanically coupled to Ca²⁺ release channels on the adjacent sarcoplasmic reticulum trigger a rapid flood of stored Ca²⁺ into the sarcoplasm.

Source: Dee Unglaub Silverthorn, Human Physiology: An Integrated Approach

The Sliding Filament Mechanism

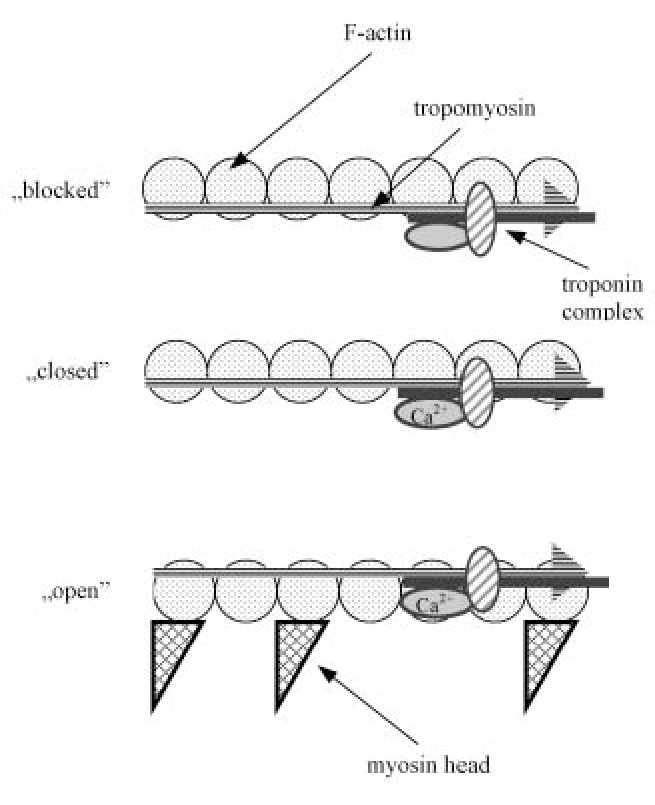

Released Ca²⁺ binds troponin, a regulatory protein complex on the thin (actin) filament; this binding causes tropomyosin (which otherwise physically blocks myosin-binding sites on actin at rest) to shift position, exposing those sites.

Source: ResearchGate, fig. 1

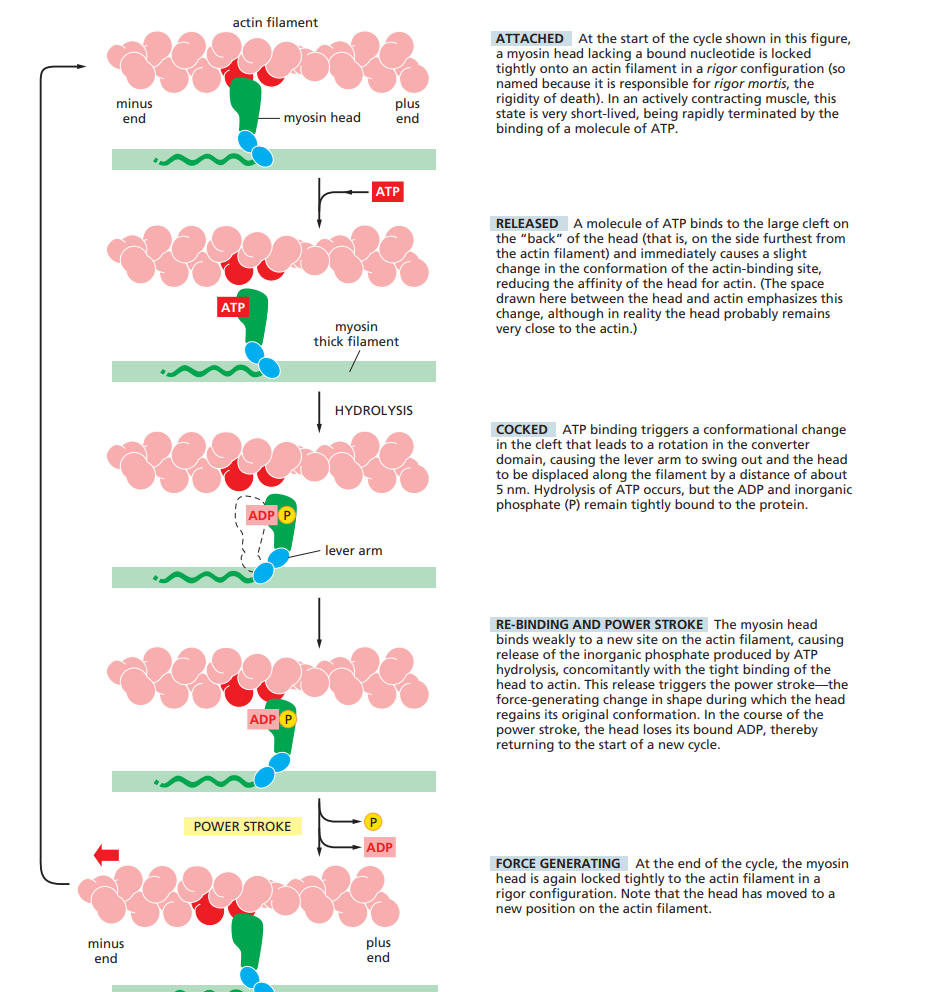

Myosin cross-bridge cycling then proceeds through a fixed mechanical sequence:

1. Cross-bridge formation — the myosin head (already ADP+Pi-bound from the previous cycle) binds the now-exposed actin site.
2. Power stroke — the myosin head releases Pi then ADP, pivoting and pulling the thin filament past the thick filament (this pivot is the actual force-generating step, and is why the mechanism is termed “sliding” — filament length does not change, only the degree of overlap).
3. Rigor — briefly, myosin remains tightly bound to actin with no bound nucleotide (this is the state responsible for rigor mortis after death, when ATP synthesis stops and no fresh ATP is available to allow detachment).
4. Detachment — a fresh ATP molecule binds myosin, causing it to release actin.
5. Cocking — myosin hydrolyzes the bound ATP to ADP+Pi, re-cocking the head to its high-energy conformation, ready to bind actin again if Ca²⁺/troponin/tropomyosin still permit it.

Source: Bruce Alberts et al., Molecular Biology of the Cell, on the myosin/actin cross-bridge cycle.

This cycle repeats asynchronously across the many myosin heads in a sarcomere for as long as cytosolic Ca²⁺ remains elevated. Contraction ends when Ca²⁺ is actively pumped back into the sarcoplasmic reticulum (by a dedicated Ca²⁺-ATPase), allowing tropomyosin to re-block the actin binding sites — relaxation, like contraction, is an active, ATP-dependent process, not merely the passive absence of stimulation.

Exam tip ATP is required for both the power stroke’s re-cocking step and for myosin-actin detachment — a classic exam trap is assuming ATP is only needed for the power stroke itself; without ATP, muscle cannot relax (rigor), it does not merely fail to contract.

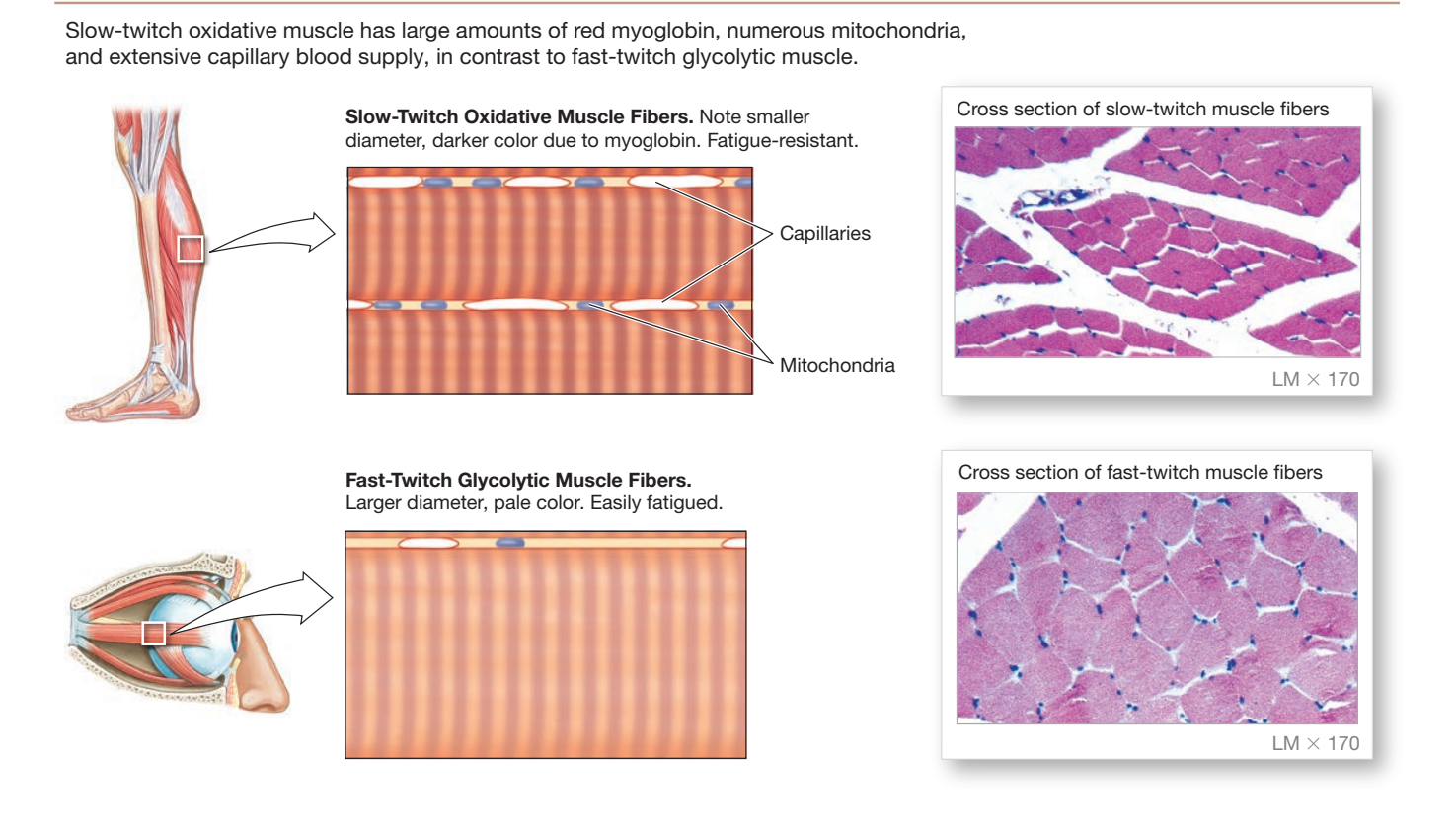

Skeletal Muscle Fiber Types

Skeletal muscle fibers are classified by contraction speed and the metabolic pathway dominating their ATP supply, which together determine fatigue resistance:

The myoglobin/mitochondrial density difference is why Type I fibers appear structurally red and Type IIx fibers appear pale/white in gross tissue — a direct structure-function link testable from a fresh muscle cross-section alone.

Source: Dee Unglaub Silverthorn, Human Physiology: An Integrated Approach

Energy Systems

Sustained contraction requires continuous ATP regeneration from one of three systems, distinguished by speed, capacity, and oxygen dependence:

• ATP-phosphocreatine (ATP-PCr) system — phosphocreatine directly donates its phosphate to ADP (catalyzed by creatine kinase), regenerating ATP within seconds with no oxygen requirement; extremely fast but limited by the small stored phosphocreatine pool (depleted within ~10 seconds of maximal effort).
• Anaerobic glycolysis — glucose/glycogen broken down to pyruvate, net 2 ATP per glucose, with pyruvate reduced to lactate when oxygen delivery cannot keep pace with demand; faster than oxidative phosphorylation but far less ATP-efficient, and the accumulating lactate/H⁺ contributes to the muscle fatigue and burning sensation of sustained near-maximal effort.
• Oxidative phosphorylation — pyruvate fully oxidized via the citric acid cycle and electron transport chain (mitochondria-dependent), yielding far more ATP per glucose than glycolysis alone, but at a slower rate — the dominant system for sustained, submaximal effort once the first two systems’ fast-but-limited capacity is exhausted.

These three systems are not alternatives an animal chooses between but a sequential recruitment by relative demand and duration: the ATP-PCr system dominates the first few seconds of any effort regardless of ultimate intensity, glycolysis dominates as intensity remains high beyond that window, and oxidative phosphorylation dominates once effort is sustained at a submaximal level — explaining why the same muscle can power both a sprint start and a subsequent longer run using different energy systems in sequence, not a fixed single pathway.

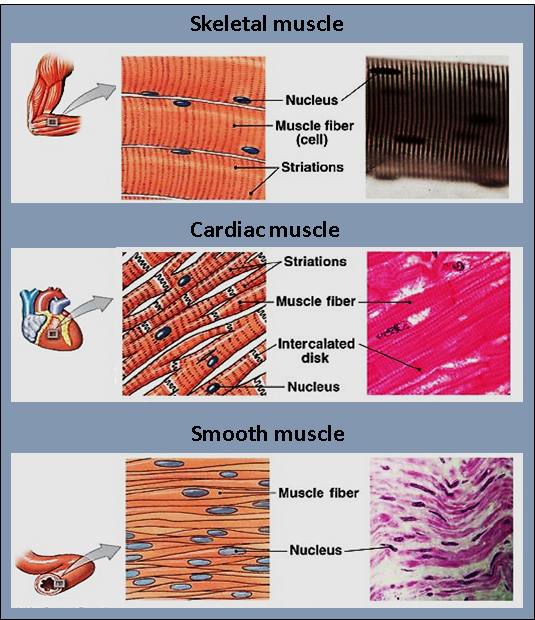

Comparative Structures

Source: Public

Common Exam Questions

• “Trace excitation-contraction coupling from neuromuscular junction ACh release to Ca²⁺ binding troponin, naming every intermediate structure.”
• “Explain why ATP is required for muscle relaxation as well as contraction, and connect this to the physiological basis of rigor mortis.”
• “Given a fresh muscle cross-section showing predominantly pale fibers with few mitochondria, predict its fiber type and most likely function.”
• “Explain why the three energy systems are recruited sequentially rather than simultaneously at full capacity, referencing a specific sustained athletic effort.”
• “Distinguish the Ca²⁺-triggered contraction mechanism of smooth muscle from that of skeletal muscle.”

Visual Reference

Interactive

• Cross-bridge cycle stepper (SVG/JS, click-through) — clicking “step” advances a myosin head through cross-bridge formation → power stroke → rigor → detachment → cocking in sequence, with the actin/myosin filament positions updating each step and the current nucleotide state (ATP/ADP+Pi/none) displayed — makes the cycle’s ATP-dependence at two distinct points explicit rather than a single memorized diagram.

• Energy system recruitment graph (Plotly) — a stacked-area chart of ATP contribution from the three energy systems over time during a simulated maximal effort, with a draggable time marker showing which system(s) dominate at any given moment — turns “sequential recruitment” into a visible, quantitative claim.

Static (placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here)

Practice Problems

1. Name, in order, every structure a signal passes through from motor neuron action potential to actin-myosin cross-bridge formation.
2. Explain why a muscle fiber deprived of ATP after death remains rigid (rigor mortis) rather than simply going limp.
3. A muscle biopsy shows fibers with high mitochondrial density and myoglobin content. Classify the fiber type and predict its most likely functional role.
4. Explain why lactate accumulates during intense anaerobic exercise, and name the energy system responsible.
5. Explain why smooth muscle contraction is not triggered by troponin, naming the calcium-binding protein that substitutes for it and the kinase it activates.
