Xylem, Phloem & Vascular Tissue

Overview

This page is the structural half of plant transport — the cell types and tissue arrangements xylem and phloem are built from. The transport mechanisms those structures enable (transpiration pull, pressure flow) belong to Plant Physiology; here the focus is what the conducting cells look like and why their structure suits a specific transport role.

Key Concepts

Xylem Conducting Cells

Xylem moves water and dissolved minerals, and both of its conducting cell types achieve this by dying: at maturity, the cytoplasm degrades entirely, leaving only a hollow, lignified cell wall tube — a dead cell is not a liability here but the structural requirement, since a continuous, unobstructed, rigid conduit is exactly what bulk water transport needs.

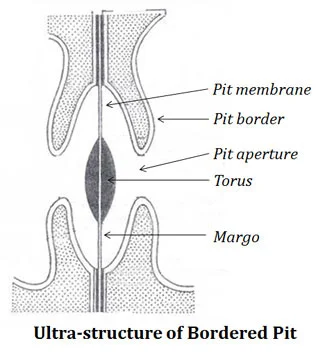

• Tracheids — long, tapered, spindle-shaped cells present in all vascular plants (the only water-conducting cell type in most gymnosperms and seedless vascular plants). Water moves between overlapping tracheid ends, and laterally between adjacent tracheids, exclusively through bordered pits — regions where the secondary wall is absent but the primary wall and middle lamella persist as a thin, porous pit membrane. In many gymnosperms this pit membrane bears a thickened central torus suspended by a mesh-like margo; the torus can shift sideways to seal the pit aperture (a one-way check valve of sorts), a specific structural mechanism limiting the spread of air embolisms from one tracheid to its neighbors. For more on pit structure and the different pit types, see easybiologyclass.com’s guide to pits.

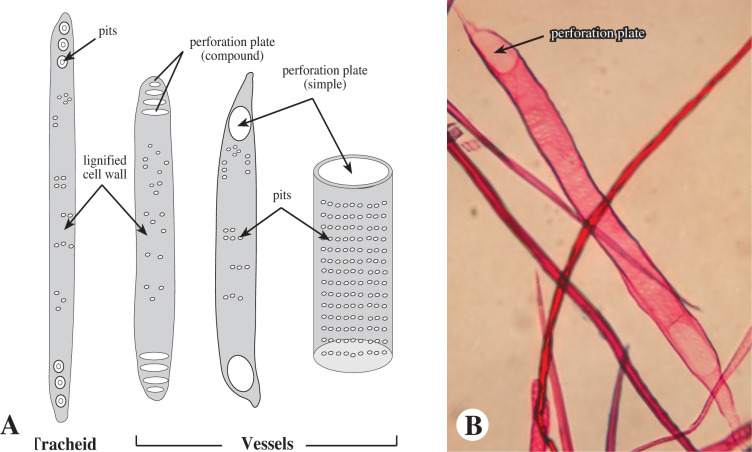

• Vessel elements — shorter and wider than tracheids, found predominantly in angiosperms (a small number of gymnosperm lineages, e.g. Gnetum, independently evolved vessels too). Adjacent vessel elements stack end-to-end and their end walls partially or completely dissolve at maturity into perforation plates (simple — a single large opening; scalariform — a row of parallel slit-like openings), fusing a column of vessel elements into a continuous, low-resistance pipe, the vessel. Because water moves through open perforations rather than only through pits, vessels offer substantially lower resistance to bulk flow than tracheids, at the structural cost of longer air-embolism spread if one segment cavitates (unlike the torus-margo check valve in gymnosperm tracheids).

Source: ScienceDirect topic page, “Tracheid” (sciencedirect.com/topics/agricultural-and-biological-sciences/tracheid)

Source: easybiologyclass.com

Xylem tissue also contains xylem parenchyma (living, the only living cells in mature xylem, involved in storage and lateral transport) and xylem fibers (sclerenchyma, providing additional mechanical support, structurally derived from the same cell lineage as tracheids/vessel elements but specialized for strength over conduction).

Phloem Conducting Cells

Phloem moves sugars and other organic solutes, and unlike xylem its conducting cells remain alive at maturity, because active loading/unloading of solutes requires a functioning plasma membrane — but they sacrifice much of their own internal machinery to maximize the cross-sectional area available for flow.

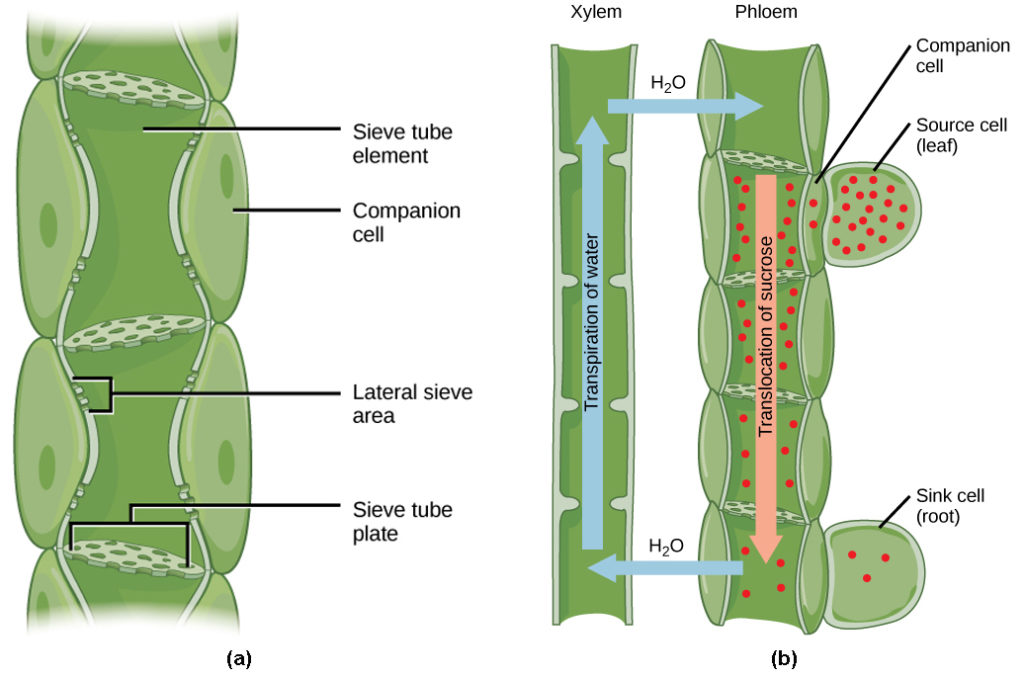

• Sieve tube elements (angiosperms) — at maturity, lose their nucleus, ribosomes, and vacuole (a rare case of a living cell without a nucleus), retaining only a thin peripheral layer of cytoplasm and a modified, enlarged endoplasmic reticulum. End walls between stacked sieve tube elements become sieve plates, perforated by pores lined with callose (a polysaccharide) and traversed by strands of cytoplasm connecting the lumens of adjacent elements — the structural basis of the entire conducting column, the sieve tube. Lateral walls carry sieve areas, smaller and less specialized versions of the same pore structure, connecting to adjacent sieve tubes and to companion cells.
• Companion cells — one or more per sieve tube element, connected to it by unusually abundant plasmodesmata (structurally elaborated into branched channels at this interface). Because the sieve tube element itself lacks a nucleus and most organelles, the companion cell supplies the metabolic support (protein synthesis, ATP) the sieve tube element cannot provide for itself — the two cells function as a single physiological unit despite being structurally distinct. A specialized companion-cell subtype, the transfer cell, has an amplified surface area from wall ingrowths, found where solute loading into the phloem is especially intense (e.g. minor veins in source leaves).

Source: Nursing Hero / WM Open Biology 2 study guide (nursinghero.com)

• Sieve cells and albuminous cells — the gymnosperm equivalents, with less specialized pore structure (sieve areas only, no true sieve plates) and a looser, non-clonal association between the conducting cell and its adjacent parenchyma cell (unlike the companion cell’s dedicated, sibling-cell relationship with “its” sieve tube element).

Source: University of Wisconsin Botany Department image glossary (botit.botany.wisc.edu)

Phloem tissue also contains phloem parenchyma (storage, lateral transport) and often phloem fibers (sclerenchyma, mechanical support, sometimes commercially harvested as bast fiber).

Vascular Bundle Arrangement

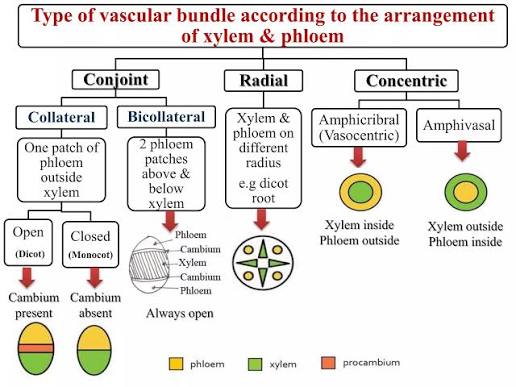

Xylem and phloem are not scattered independently through ground tissue but organized together into discrete vascular bundles, whose internal arrangement varies systematically and is a recurring practical-identification feature:

Source: user-sourced (Facebook group post)

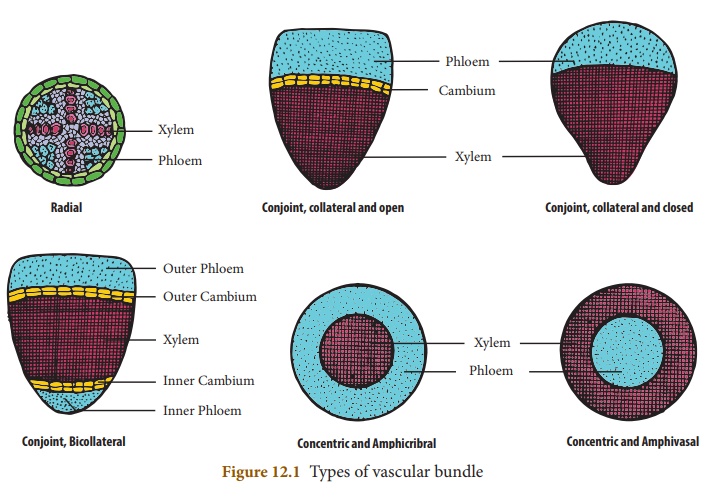

Collateral bundles are further split by whether a strip of meristematic vascular cambium persists between the xylem and phloem: an open bundle retains this cambium and can therefore undergo secondary growth (characteristic of dicots), while a closed bundle has no cambium between xylem and phloem and cannot thicken further after primary growth (characteristic of monocots) — this open/closed distinction is the direct structural reason monocots, as a rule, lack secondary growth and dicots, as a rule, have it, developed further on Monocot vs Dicot Comparative Anatomy and Secondary Growth & Wood Anatomy.

Source: BrainKart, “Tissue system” (brainkart.com)

Comparative Structures

Common Exam Questions

• “Explain why xylem conducting cells are dead at maturity but phloem conducting cells are alive, in terms of the transport function each performs.”
• “Distinguish tracheids from vessel elements by structure and taxonomic distribution.”
• “Explain the functional relationship between a sieve tube element and its companion cell, referencing which organelles each cell retains.”
• “Describe the torus-margo mechanism in gymnosperm bordered pits and its functional significance for embolism containment.”
• “Distinguish collateral, bicollateral, amphivasal, and amphicribral vascular bundle arrangements, and identify which taxa each is characteristic of.”
• “Explain why an open vascular bundle permits secondary growth while a closed bundle does not.”

Visual Reference

Interactive

• Bordered pit / perforation plate comparison (click-through SVG/JS, no new library) — cross-sections through a tracheid-tracheid pit pair and a vessel-vessel perforation plate side by side; clicking either toggles a simulated water path through it, visually contrasting the pit membrane’s resistance against the perforation plate’s open channel.

• Vascular bundle arrangement identifier (click-through quiz) — four unlabeled bundle cross-sections (collateral/bicollateral/amphivasal/amphicribral); clicking one prompts identification, then reveals the answer with the xylem/phloem positions highlighted in different colors.

(Static images are placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here.)

Practice Problems

1. Explain why a dead, hollow cell is structurally advantageous for water conduction rather than a liability.
2. A wood sample shows conducting cells connected end-to-end only through bordered pits, with no perforation plates anywhere. Identify the conducting cell type and the likely plant group.
3. Explain why a sieve tube element cannot survive without its companion cell, referencing specifically which cellular functions each provides.
4. A cross-section shows a central xylem strand completely surrounded by phloem. Name this bundle arrangement and identify a plant group where it is characteristic.
5. Explain, structurally, why monocot stems typically cannot increase in girth after the first growing season while dicot stems can.
