Flower Anatomy & Reproductive Structures

Overview

The flower is a modified shoot whose leaves have differentiated into reproductive structures — most of its terminology (whorl, merosity) already appeared in Monocot vs Dicot Comparative Anatomy at the level of counting parts; this page goes inside each whorl to the cellular and developmental structure that actually produces the male and female gametophytes.

Key Concepts

The Four Floral Whorls

A flower is built on a receptacle (the expanded tip of the floral stalk, or pedicel) bearing four concentric whorls, outermost to innermost:

• Calyx — collectively, the sepals; typically green and photosynthetic, enclosing and protecting the bud before it opens.
• Corolla — collectively, the petals; typically the showiest whorl, structurally adapted (color, shape, scent-producing tissue) to attract specific pollinators.
• Androecium — collectively, the stamens, the male reproductive whorl; each stamen consists of a filament (stalk) supporting an anther (pollen-producing structure, detailed below).
• Gynoecium — collectively, the carpels (a flower’s carpels, whether separate or fused into one compound structure, are collectively called the pistil), the female reproductive whorl; each carpel differentiates into a stigma (receptive surface for pollen), style (a stalk connecting stigma to ovary, containing specialized transmitting tissue that guides pollen tube growth), and ovary (the enlarged base containing one or more ovules — detailed below).

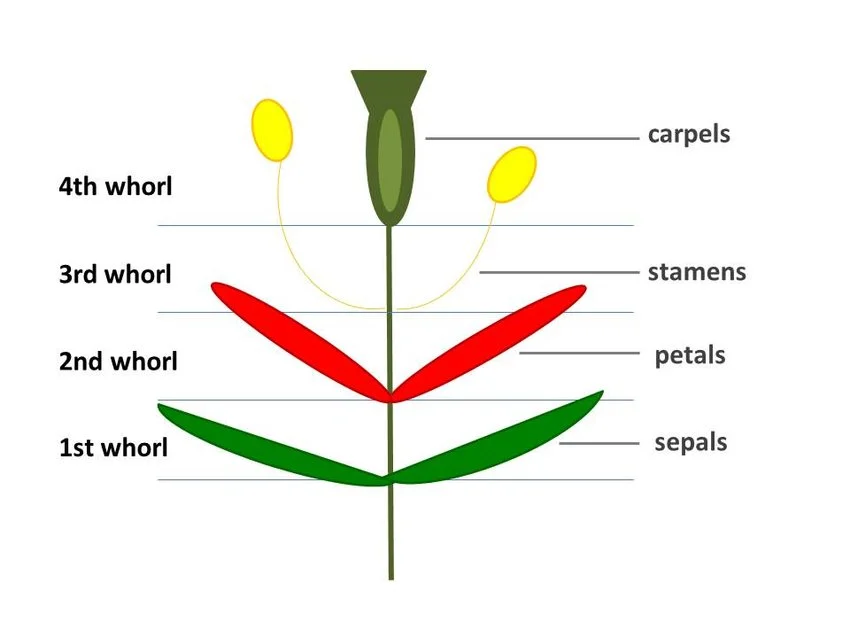

Source: ResearchGate, fig. 1, “Whorls (circular sections of the flower…)”

A flower bearing all four whorls is complete; one missing any whorl (most commonly the calyx or corolla) is incomplete. Independent of that, a flower with both a functional androecium and gynoecium is perfect (bisexual); one lacking a functional whorl of one sex is imperfect (unisexual — staminate or carpellate). A species where a single plant bears both staminate and carpellate flowers is monoecious; a species where separate individual plants are entirely staminate or entirely carpellate is dioecious — this specific distinction determines whether a single isolated plant can produce seed on its own.

Anther Structure and Microsporogenesis

A typical anther consists of two lobes (thecae) joined by sterile connective tissue, each theca containing two microsporangia (pollen sacs) — four pollen sacs per anther in total. Each pollen sac is lined internally by the tapetum, a nutritive layer that supplies developing pollen with nutrients and contributes material (sporopollenin) to the pollen wall itself.

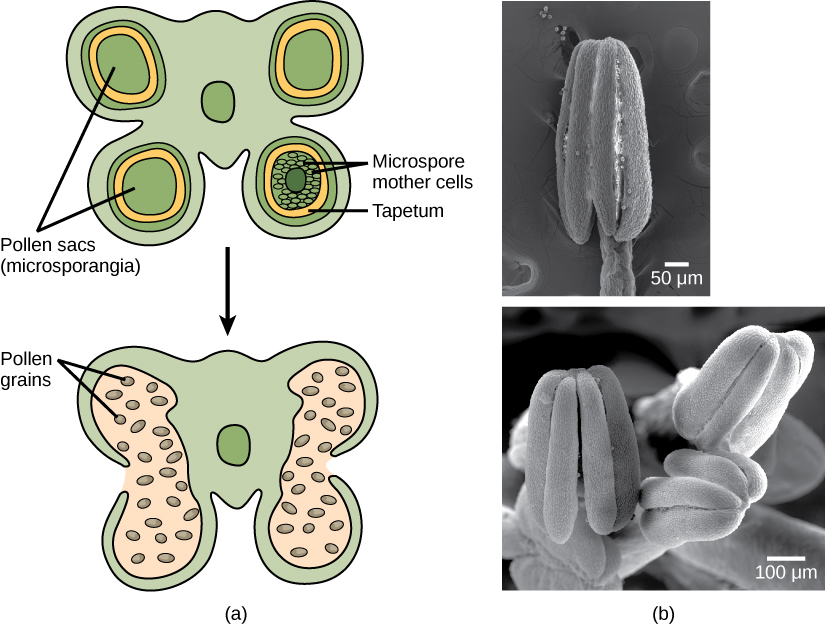

Source: OpenStax Biology (via Biology Stack Exchange)

Inside each pollen sac, diploid microspore mother cells (microsporocytes) undergo meiosis, each producing a tetrad of four haploid microspores. Each microspore then develops, by mitosis, into a mature pollen grain — the male gametophyte, reduced to just two or three cells: a large tube cell (which will grow the pollen tube) and, contained within it, a smaller generative cell (which divides once, either before or after pollen release depending on species, to produce two non-motile sperm cells carried down the tube — the structural replacement, in flowering plants, for the free-swimming sperm of earlier land-plant lineages). The tough, patterned outer wall (exine, sporopollenin-based, highly resistant to decay — the reason fossil pollen persists well enough for the aperture-pattern comparison on Monocot vs Dicot Comparative Anatomy) and a thinner inner wall (intine) together protect the pollen grain during transport between anther and stigma.

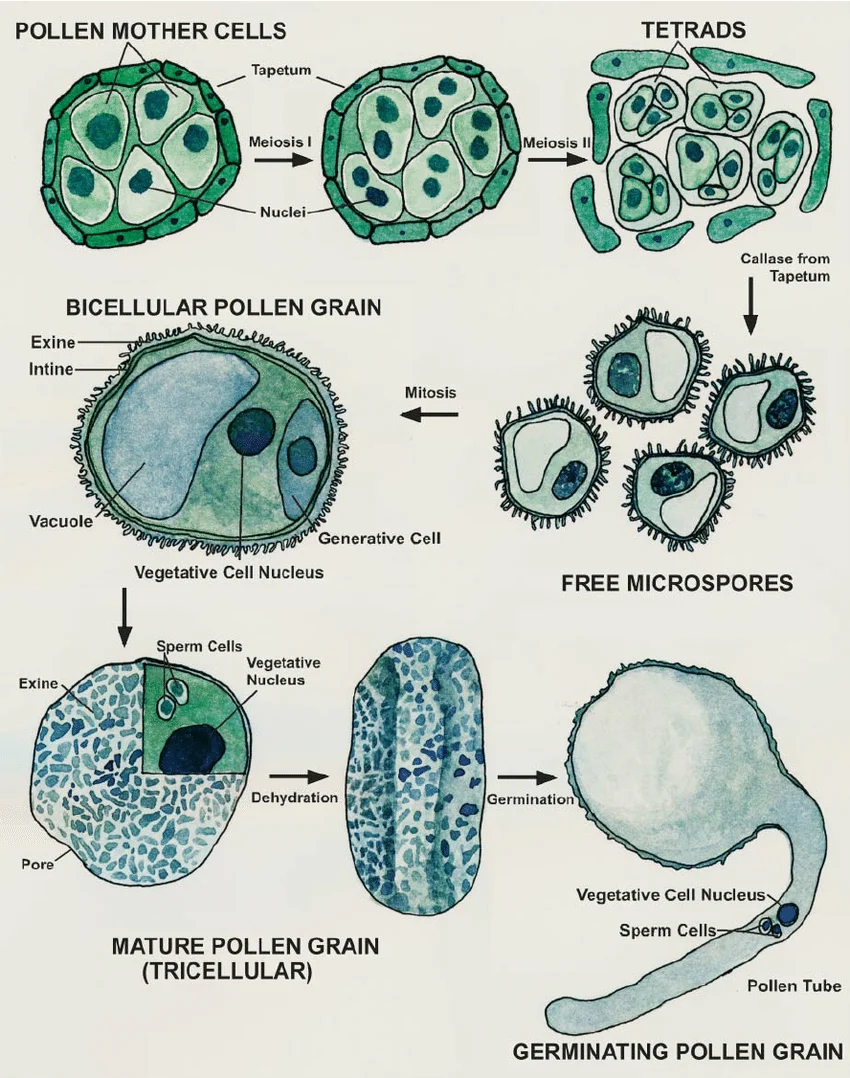

Source: ResearchGate, fig. 1, “Scheme of Microsporogenesis”

Ovule Structure and Megasporogenesis

An ovule attaches to the ovary wall (specifically to the placenta, the ovary tissue ovules are borne on) by a stalk, the funiculus. The bulk of the ovule is the nucellus (megasporangium tissue), enclosed by one or two protective integuments that leave a small opening, the micropyle, at one end — the structural entry point pollen tubes grow through to reach the interior.

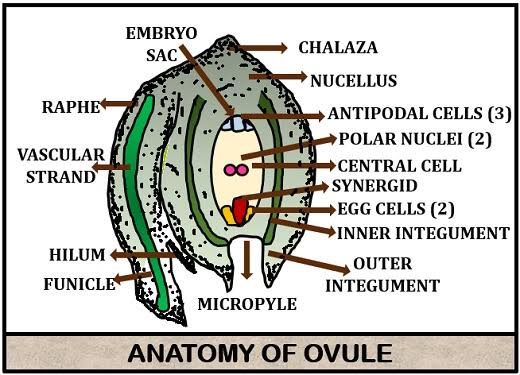

Source: Biology Reader, “Ovule” (biologyreader.com)

Within the nucellus, a diploid megaspore mother cell (megasporocyte) undergoes meiosis, typically producing four haploid megaspores, of which three degenerate and one survives. The surviving megaspore then undergoes three rounds of mitotic division without cytokinesis, followed by cellularization, producing the mature female gametophyte — the embryo sac. In the most common developmental pattern (the Polygonum type, found in the large majority of angiosperms), the mature embryo sac is 7-celled and 8-nucleate: one egg cell flanked by two synergid cells near the micropylar end (the synergids assist pollen tube guidance into the embryo sac), three antipodal cells at the opposite (chalazal) end, and a large central cell containing two polar nuclei (the only cell with two nuclei, accounting for the 7-cell/8-nucleus discrepancy).

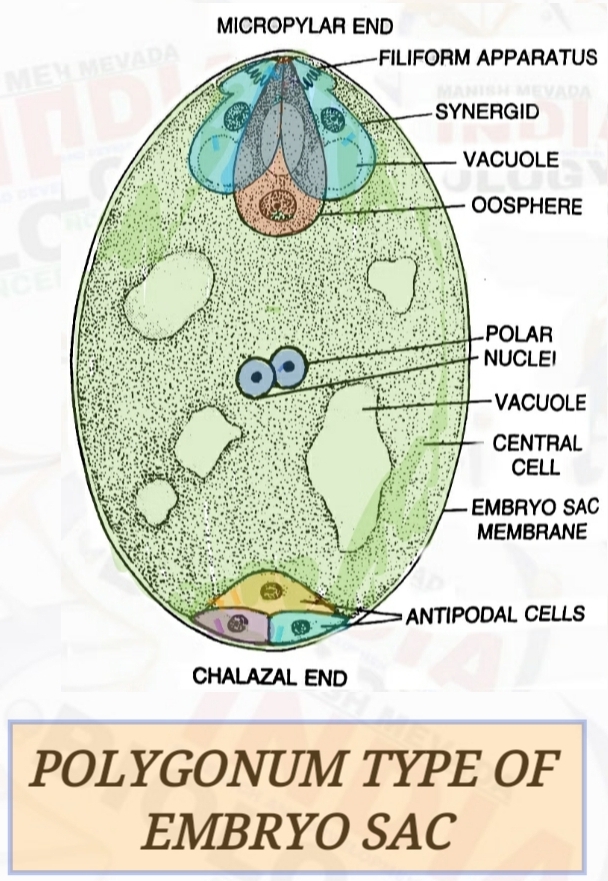

Source: indiabiologyneet.com

Placentation

The position at which ovules attach inside the ovary (placentation) varies structurally by family and is a further practical-identification feature:

Source: Facebook educational post

Double Fertilization

A pollen grain landing on a receptive stigma germinates a pollen tube, which grows down through the style’s transmitting tissue, enters the ovule through the micropyle, and delivers both sperm cells into the embryo sac — a mechanism unique to flowering plants, structurally producing two fertilization events from one pollen tube: one sperm fuses with the egg cell, forming the diploid zygote; the other fuses with the central cell’s two polar nuclei simultaneously, forming a triploid primary endosperm nucleus, which develops into the nutritive endosperm tissue that will support the developing embryo — full structural detail of both, once mature within the seed, on Seed & Fruit Anatomy.

Comparative Structures

Common Exam Questions

• “Distinguish a complete flower from a perfect flower, and give an example of a flower that is one but not the other.”
• “Trace pollen development from microspore mother cell to mature pollen grain, naming each structure and stage.”
• “Describe the structure of a Polygonum-type embryo sac, accounting for why it is described as 7-celled but 8-nucleate.”
• “Explain what double fertilization produces, and why the two fertilization events yield tissues of different ploidy.”
• “Distinguish axile from parietal placentation.”
• “Explain the functional roles of synergid cells and antipodal cells within the embryo sac.”

Visual Reference

Interactive

• Microsporogenesis / megasporogenesis parallel walkthrough (click-through SVG/JS, no new library) — two side-by-side tracks (anther → pollen grain; ovule → embryo sac), stepping through meiosis and subsequent divisions in sync, so the shared meiotic starting point and divergent cell-count outcomes (microspore tetrad, all four viable, vs. megaspore tetrad, three degenerating) are visually contrasted rather than read as separate paragraphs.

• Double fertilization click-through (SVG/JS, no new library) — a pollen tube growing through the micropyle into an embryo sac; clicking triggers the two simultaneous fusion events (sperm+egg, sperm+polar nuclei), each labeled with the resulting ploidy.

(Static images are placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here.)

Practice Problems

1. A flower has sepals and stamens but no petals or carpels. Classify it as complete/incomplete and as perfect/imperfect.
2. Explain why three of the four megaspores produced by meiosis degenerate, while all four microspores from an equivalent meiotic division survive.
3. Name the two cells within a mature pollen grain and state the fate of each after the pollen tube reaches the embryo sac.
4. Explain why the primary endosperm nucleus is triploid while the zygote is diploid, tracing both back to the same pollen tube’s sperm delivery.
5. A cross-section shows ovules attached along a central axis in an ovary with several internal septa. Identify the placentation type.
