Invertebrate Body Plans I

Overview

This is the first of the two Animal Kingdom pages — deliberately the lightest-depth tier of this section relative to the Human tier (see the section landing page for the 5:3:2 rationale), but still covering named cell types and specific structural mechanisms, not just phylum-level generalities. Five phyla here, organized as a structural complexity gradient using the vocabulary from Body Plans: Porifera, Cnidaria, Platyhelminthes, Nematoda, Annelida.

    graph LR;
    A["Porifera<br/>no true tissues"] --> B["Cnidaria<br/>diploblastic, radial"];
    B --> C["Platyhelminthes<br/>triploblastic, acoelomate"];
    C --> D["Nematoda<br/>pseudocoelomate"];
    D --> E["Annelida<br/>eucoelomate, segmented"];


Key Concepts

Porifera (Sponges)

The structural outlier of the animal kingdom: sponges have no true tissues — cells are specialized but not organized into tissue-level structures, making Porifera asymmetrical and the only major phylum genuinely outside the symmetry/germ-layer framework from Body Plans. The body wall has specific named cell types: pinacocytes (flattened cells forming the outer covering, the pinacoderm, structurally the closest thing sponges have to an epithelium, though not a true one), choanocytes (flagellated “collar cells” lining internal chambers — each collar is a ring of microvilli that traps food particles while the flagellum drives water flow, combining feeding and water pumping in one cell), amoebocytes/archaeocytes (mobile cells in the gelatinous mesohyl between the two cell layers, distributing nutrients, and capable of differentiating into any other sponge cell type — the structural basis of sponges’ remarkable regenerative capacity), and sclerocytes (secrete skeletal spicules, see below).

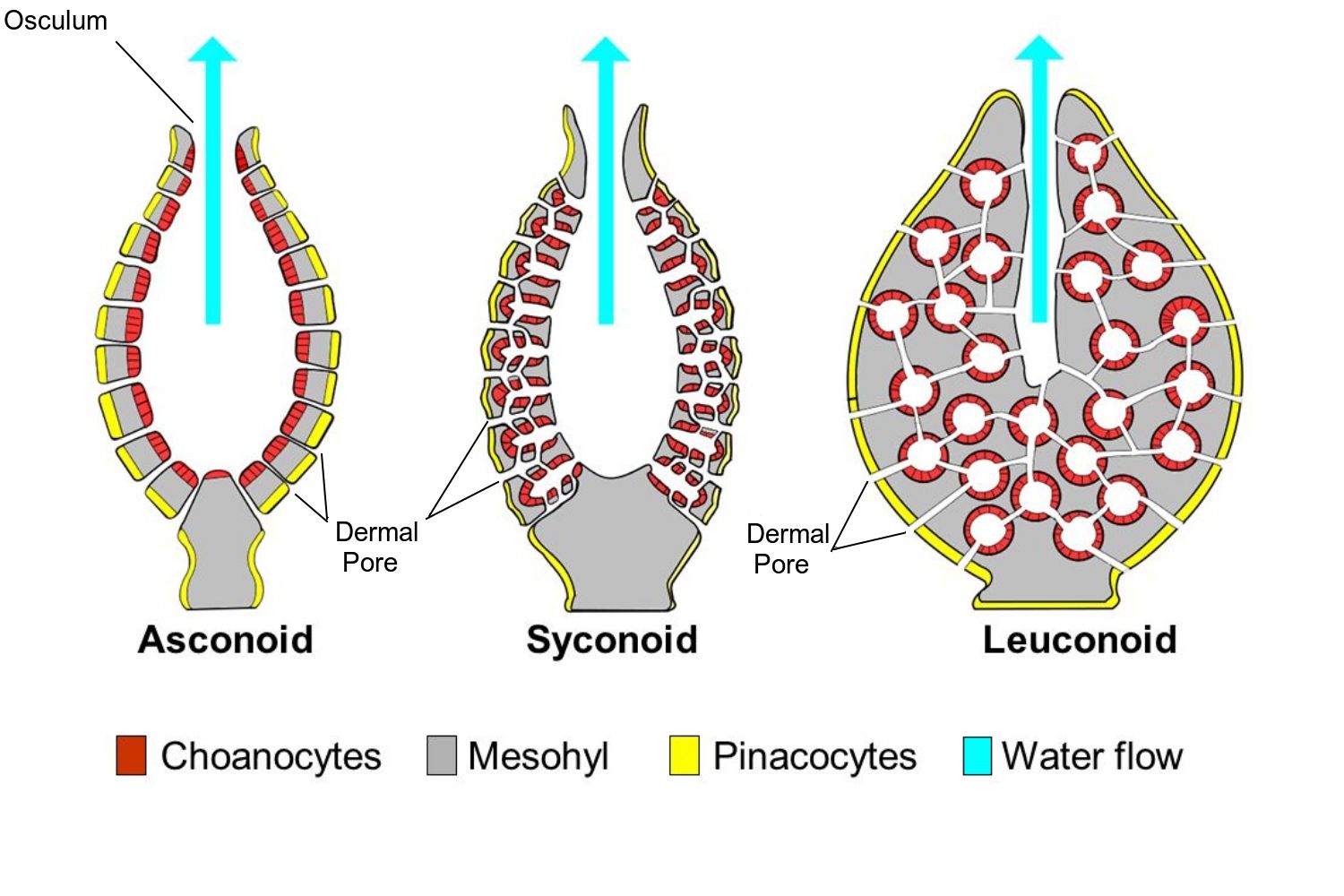

Sponge body organization is classified by the structural complexity of its water-canal system — a direct, testable structural progression: asconoid (simplest — a single body-wall layer, choanocytes line the central cavity directly, water flows straight in through pores and out the osculum), syconoid (body wall folded into radial canals lined by choanocytes, increasing choanocyte surface area beyond what a simple tube allows), and leuconoid (most complex, most common in larger sponges — choanocytes restricted to numerous small internal chambers fed and drained by a branching canal network, maximizing both surface area and total water-processing capacity relative to body size). The skeleton is built from spicules (calcium carbonate or silica, composition and shape are taxonomically diagnostic) secreted by sclerocytes, or from spongin (a flexible collagen-like protein fiber network) secreted by spongocytes, or both.

Source: ThoughtCo

Cnidaria (Jellyfish, Sea Anemones, Corals)

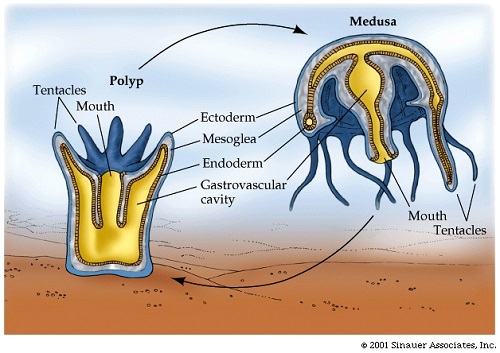

The first phylum with true tissues, matching the diploblastic and radial symmetry categories from Body Plans: an outer epidermis and inner gastrodermis sandwich a largely acellular gelatinous layer, the mesoglea (thin in polyps, thick and structurally significant — providing the “jelly” in jellyfish — in medusae). Two body forms, often alternating in a single life cycle: the sessile polyp (e.g. sea anemone; mouth/tentacles facing up) and the free-swimming medusa (e.g. jellyfish; mouth/tentacles facing down, mesoglea thickened for buoyancy). Both share a gastrovascular cavity — a single opening serving as both mouth and anus, lined by the gastrodermis, with digestion partly extracellular (enzymes secreted into the cavity) and partly intracellular (gastrodermal cells phagocytose partially digested particles) — structurally simpler than the one-way, fully specialized human GI tract (see Human Digestive System).

Source: Sinauer Associates, Inc.

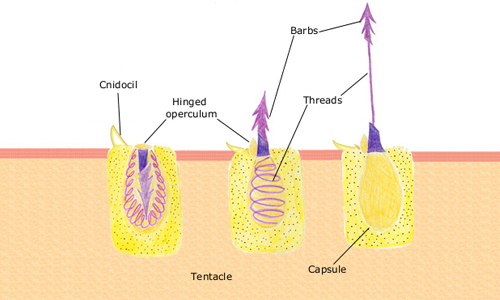

The defining structural feature of the phylum is the cnidocyte, a specialized stinging cell containing a nematocyst — a fluid-filled capsule with a coiled, harpoon-like thread under high internal pressure. A hair-like trigger, the cnidocil, projects from the cnidocyte surface; mechanical or chemical stimulation causes an internal lid (operculum) to open and the thread to evert explosively outward (one of the fastest cellular processes known), penetrating and/or entangling prey, sometimes with a toxin delivered along the thread — used for prey capture and defense.

Source: DifferenceBetween.net

Nervous tissue is organized as a nerve net, a diffuse web of interconnected neurons (in some medusae organized into a marginal nerve ring coordinating swimming) with no centralization or brain — the structural baseline against which the centralized human CNS (see Human Nervous System) can be contrasted directly. Major classes differ in which body form dominates the life cycle: Hydrozoa (often alternates polyp/medusa, e.g. Hydra is polyp-only), Scyphozoa (“true jellyfish,” medusa-dominant), Cubozoa (box jellyfish, medusa-dominant, most potent nematocyst toxins), Anthozoa (sea anemones, corals — polyp-only, no medusa stage).

Platyhelminthes (Flatworms)

The first triploblastic, bilaterally symmetric phylum on this page — meaning true mesoderm-derived tissue and, per the Body Plans page’s link between bilateral symmetry and cephalization, the first phylum with a real head end and centralized nervous tissue: a small anterior cerebral ganglion (“brain”) connected to longitudinal nerve cords running the body length in a ladder-like arrangement. Structurally, flatworms are acoelomate — no body cavity; the space between the gut and body wall is packed with mesoderm-derived tissue (mesenchyme), which is also why flatworms are dorsoventrally flattened: with no circulatory system and no coelom, oxygen and nutrients must diffuse directly across tissue, which only works if no cell is far from a body surface. This same lack of a circulatory system creates a specific excretory structural requirement: flatworms use protonephridia — a network of tubules capped internally by flame cells (bearing a tuft of beating cilia inside a cup-like cell, resembling a flickering flame under a microscope, and driving fluid movement through the tubule by ciliary action rather than filtration under blood pressure, unlike the vertebrate nephron) that filters interstitial fluid and expels dilute waste through excretory pores — structurally the simplest named excretory unit in this section, worth contrasting directly with the annelid nephridium below and the vertebrate nephron on the Human Excretory System page.

Source: Wikipedia “Flame cell”

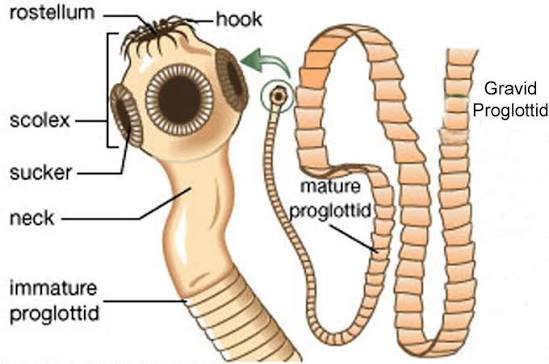

Three classes show markedly different structural strategies: Turbellaria (mostly free-living, e.g. planarians — a blind, branched gastrovascular cavity, ciliated epidermis for locomotion), Trematoda (flukes — parasitic, with oral and ventral suckers for host attachment and a thick protective tegument, a syncytial outer covering resistant to host digestive/immune attack), and Cestoda (tapeworms — the most structurally reduced of the three: no gut at all, nutrients absorbed directly across the tegument while immersed in the host’s digested food; the body is organized into a scolex (an anterior attachment structure bearing hooks/suckers) followed by a chain of repeating segments, proglottids, each containing its own reproductive organs and budded off continuously from the scolex — a segmented body plan structurally convergent with, but not homologous to, annelid/arthropod segmentation, since it arises purely from asexual budding rather than mesodermal somite formation).

Source: lecture notes

Nematoda (Roundworms)

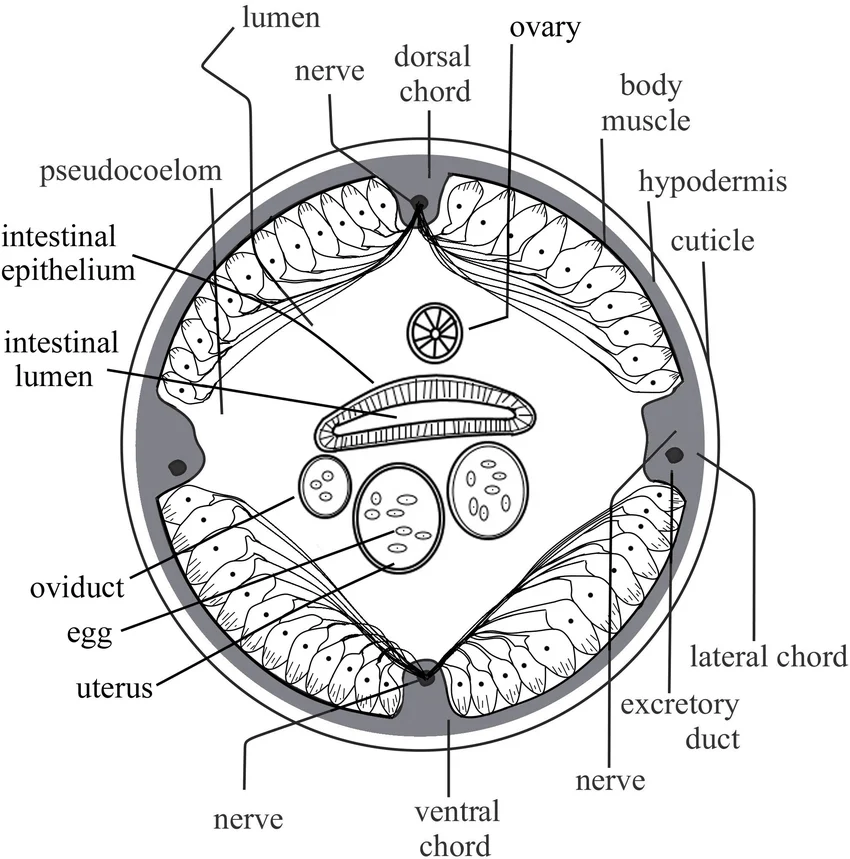

The first pseudocoelomate phylum — a body cavity present but only partially lined by mesoderm (see Body Plans). Structurally, nematodes are a simple, unsegmented cylindrical tube built as “a tube within a tube”: the outer body wall and the inner digestive tract, separated by the fluid-filled pseudocoelom, which — unlike the acoelomate flatworm’s solid mesenchyme — allows the gut to move independently and gives the fluid-filled cavity a hydrostatic function (the fluid is held under pressure by a tough, flexible outer cuticle, secreted by the underlying epidermis and periodically molted (ecdysis) as the animal grows — a structural/developmental process shared, though not homologous in detail, with the arthropod exoskeleton on the next page). The pseudocoelom allows a complete, one-way digestive tract (separate mouth and anus) for the first time on this page, permitting continuous rather than batch-mode feeding and digestion. The body wall contains only longitudinal muscle (no circular muscle layer, unlike annelids below), arranged in four bands; contraction alternating between the dorsal and ventral bands, acting against the pressurized pseudocoelomic fluid and stiff cuticle, produces the characteristic thrashing/whipping movement rather than the smooth crawling enabled by circular-plus-longitudinal muscle layers.

Source: ResearchGate

Annelida (Segmented Worms)

The most structurally advanced phylum on this page: eucoelomate (true coelom, fully mesoderm-lined) and metamerically segmented — a linear series of repeating body segments largely separated internally by partitions (septa), each segment (in taxa like the earthworm) containing its own coelomic compartment, its own pair of excretory organs, and local nerve ganglia connected into a ventral nerve cord (a step beyond the flatworm’s simple cerebral ganglion, though still not centralized into a single brain the way vertebrate nervous systems are).

Excretory structure: annelids use metanephridia — a structural step up from the flatworm protonephridium, opening at both ends: an internal ciliated funnel, the nephrostome, draws coelomic fluid in from one segment, passing it through a coiled tubule (where useful solutes are reabsorbed) to an external pore, the nephridiopore, in the adjacent segment — a filtration-and-modification logic directly analogous in principle, though far simpler in structure, to the vertebrate nephron’s tubule (see Human Excretory System).

Circulatory structure: unlike the open systems seen in most mollusks and all arthropods (see the next page), annelids have a closed circulatory system — blood remains confined within vessels throughout its circuit, driven by a dorsal vessel (contractile, functioning as the main propulsive vessel, blood flows anteriorly) and a ventral vessel (blood flows posteriorly), connected in each segment by lateral vessels; in earthworms specifically, five pairs of anterior lateral vessels are muscular and contractile enough to function as accessory pumping “hearts” (aortic arches), supplementing the dorsal vessel.

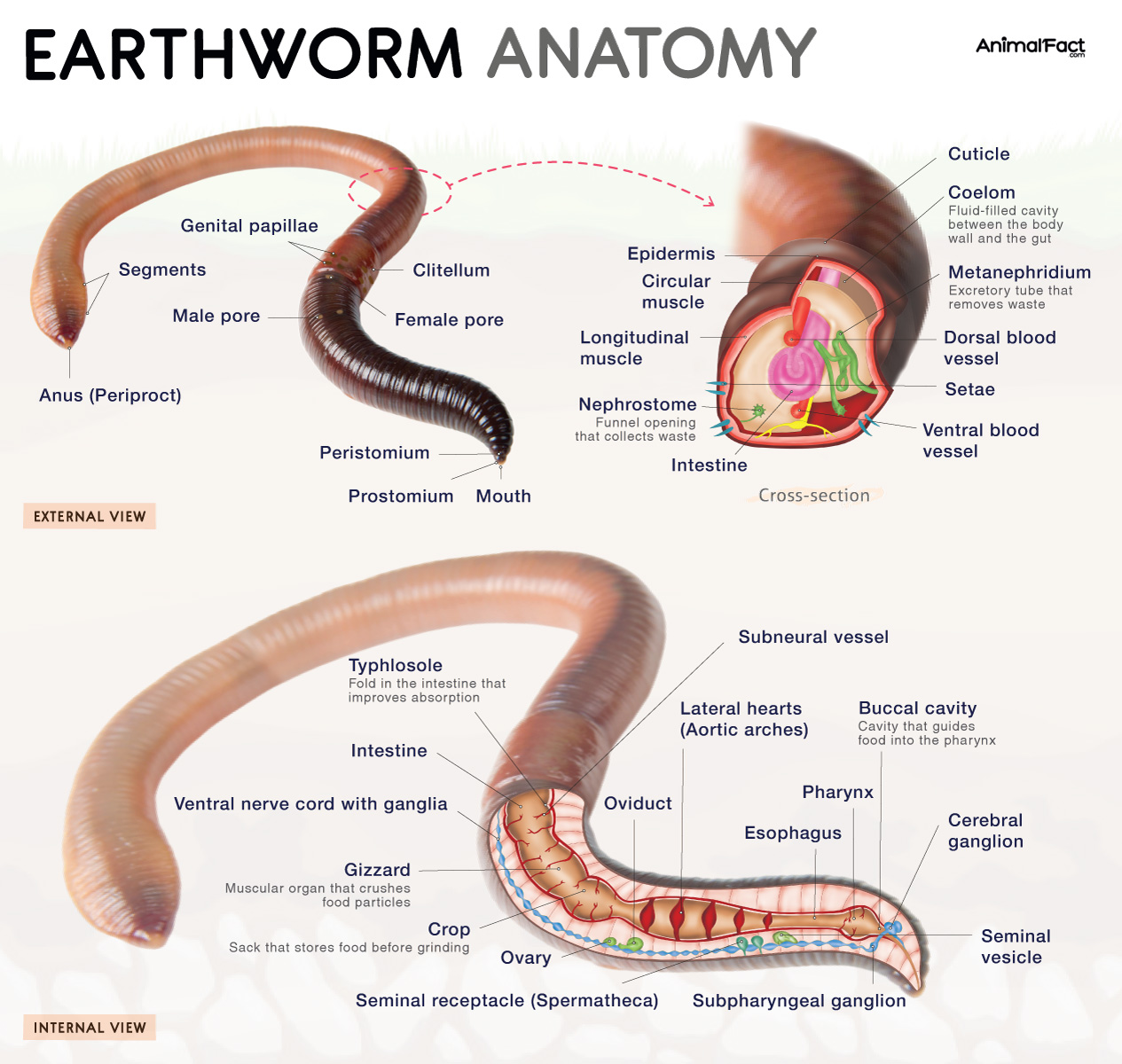

Locomotion: the true coelom, combined with a body wall containing both circular and longitudinal muscle layers, functions as a proper hydrostatic skeleton: alternating contraction of the two muscle layers against the coelomic fluid (incompressible, only reshapable) produces the smooth, extending-and-contracting peristaltic locomotion characteristic of earthworms, often aided by small bristle-like chaetae (setae) anchoring segments against the substrate during each contraction wave.

Source: AnimalFact.com

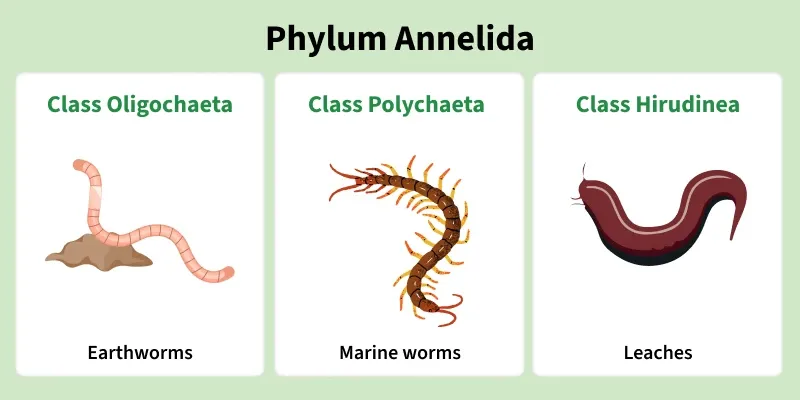

Three classes differ structurally in appendage/chaetae arrangement, directly reflecting lifestyle: Polychaeta (mostly marine, “many chaetae” — paired fleshy lateral appendages, parapodia, bearing numerous chaetae, used for swimming/crawling and often doubling as respiratory gill surfaces), Oligochaeta (e.g. earthworms, “few chaetae” — chaetae present but no parapodia; bear a clitellum, a thickened glandular band of segments producing the mucus cocoon for egg deposition, a specific reproductive structural landmark), Hirudinea (leeches — chaetae and (in most) septa are lost entirely; anterior and posterior suckers replace them for host attachment and locomotion by looping).

Source: GeeksforGeeks

Comparative Structures

Common Exam Questions

• “Rank asconoid, syconoid, and leuconoid sponge body plans by structural complexity and explain the functional advantage of increased complexity.”
• “Explain the mechanism by which a nematocyst fires, naming the trigger structure and describing what happens to the thread.”
• “Distinguish protonephridia from metanephridia by structure (open vs. closed at the internal end) and name a phylum with each.”
• “Explain why tapeworm proglottid segmentation is not considered homologous to annelid metameric segmentation despite superficial similarity.”
• “Explain how alternating circular and longitudinal muscle contraction against a fluid-filled coelom produces earthworm locomotion, and identify a structure that anchors each segment during this process.”
• “Compare the three annelid classes by chaetae/appendage structure and relate each to its habitat.”

Visual Reference

Interactive

(Implemented inline above: the sponge water-flow simulator sits directly below the asconoid/syconoid/leuconoid image, and the nematocyst firing animation sits directly below the cnidocyte three-stage image.)

Static

(Static images are placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here.)

Practice Problems

1. Explain why Porifera is described as lacking true tissues, and what this means for its position relative to the symmetry/germ-layer framework used for every other phylum on this page.
2. A worm has a complete digestive tract (separate mouth and anus) but only longitudinal body-wall muscle. Which phylum on this page does this describe, and what movement pattern follows from the muscle layout?
3. Rank Cnidaria, Platyhelminthes, Nematoda, and Annelida by coelom development, from least to most, and name the coelom-type term for each.
4. Explain how segmentation in Annelida relates to the independent function of metanephridia in each segment.
5. A tapeworm has no digestive tract. Explain how it obtains nutrients and describe the structural feature that makes this possible.
