Stem Anatomy

Overview

Where the root’s vascular tissue is consolidated into a single central stele, the stem’s vascular tissue is organized into discrete bundles distributed through the ground tissue — and exactly how those bundles are distributed is the single biggest structural axis distinguishing dicot from monocot stems. This page covers primary stem structure; the cambial activity that thickens a stem after its first season is covered separately on Secondary Growth & Wood Anatomy.

Nodes, Internodes, and Bud Origin

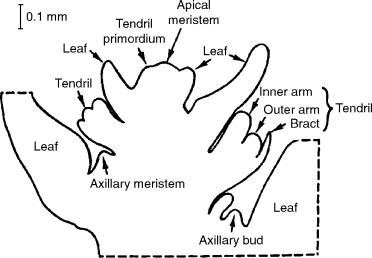

A stem’s length is organized into repeating units: nodes (points where one or more leaves attach) separated by internodes. At each node, in the angle between the leaf and the stem (the leaf axil), sits an axillary bud — a small dormant shoot apical meristem, capable of producing a lateral branch or, in some cases, a flower. Because axillary buds form at the shoot apical meristem itself, at the stem’s surface, lateral branches have an exogenous origin — the direct structural opposite of the root’s endogenous, pericycle-derived lateral root origin covered on Root Anatomy, and a frequently tested root-vs-stem contrast.

Source: ScienceDirect topic page, “Axillary bud” (sciencedirect.com/topics/agricultural-and-biological-sciences/axillary-bud)

Stem Epidermis and Cortex

The stem epidermis, like the root’s, is a single cell layer, but unlike the root epidermis it bears a substantial waxy cuticle and functional stomata (fewer in density than in leaves, but present, especially on young green stems capable of photosynthesis) — consistent with the stem’s above-ground, desiccation-exposed position. The cortex, internal to the epidermis, is mostly parenchyma but frequently includes a band of collenchyma directly beneath the epidermis — mechanical support that must remain flexible, since this outer cortical region is still capable of some elongation even after the internode’s main growth has slowed (see Plant Tissue Systems for why collenchyma specifically suits growing organs).

Vascular Bundle Arrangement: Eustele vs. Atactostele

The stem’s vascular bundles (see Xylem, Phloem & Vascular Tissue for bundle-type vocabulary) are arranged in one of two patterns, the clearest single cross-sectional distinction between dicot and monocot stems:

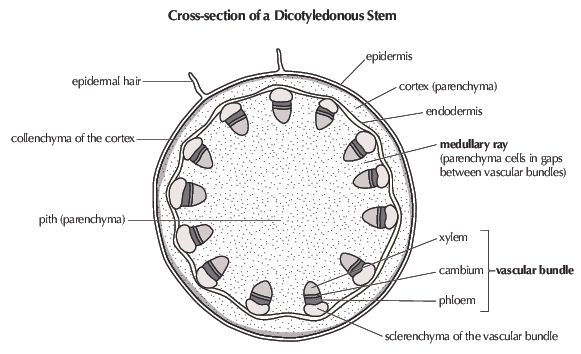

• Eustele (typical dicots) — a limited number of collateral, open bundles (retaining a strip of vascular cambium between xylem and phloem) arranged in a single ring, clearly separating an outer cortex from an inner pith. Between adjacent bundles, radiating parenchyma strips called pith rays (medullary rays) connect the pith to the cortex, providing a lateral transport route across the ring and, later, a path along which interfascicular cambium develops (see Secondary Growth & Wood Anatomy).

Source: Siyavula (siyavula.com)

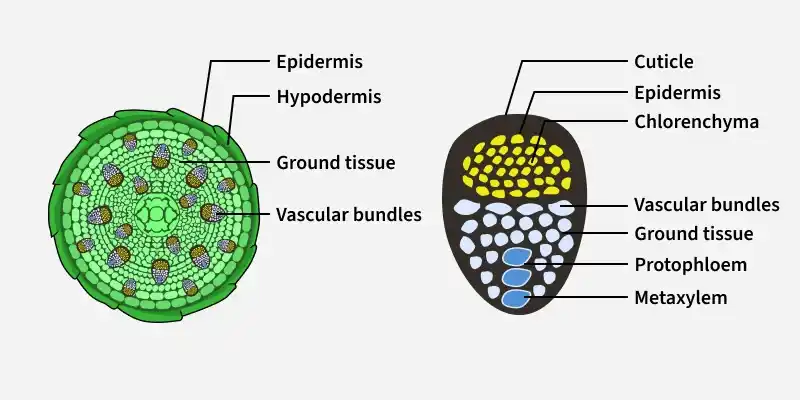

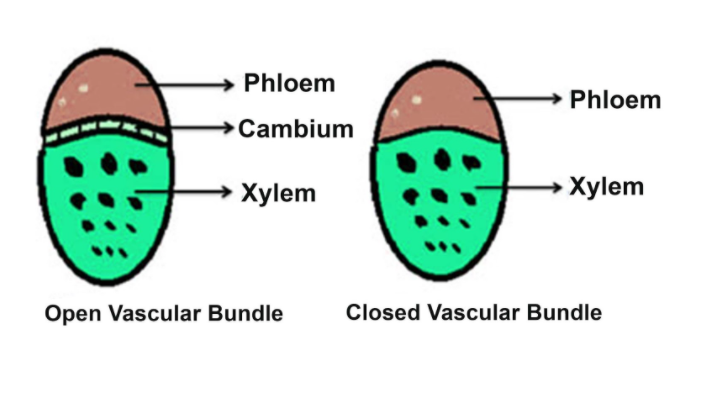

• Atactostele (typical monocots) — numerous collateral, closed bundles (no cambium — see Xylem, Phloem & Vascular Tissue for why a closed bundle cannot undergo further thickening) scattered throughout the ground tissue with no organized ring, and consequently no clean cortex/pith distinction the way a eustele has. Each bundle is typically wrapped in a sclerenchyma bundle sheath, giving each scattered bundle its own independent mechanical reinforcement rather than relying on a ring-level support structure.

Source: GeeksforGeeks (geeksforgeeks.org)

Because monocot bundles are closed and scattered with no interfascicular tissue positioned to form a continuous cambium ring, monocot stems as a rule cannot undergo secondary growth — the same structural consequence noted for monocot roots, and the reason monocot stems that do thicken (palms, some Yucca and Dracaena) do so through unusual, non-cambial mechanisms rather than a true vascular cambium, treated as an exception on Monocot vs Dicot Comparative Anatomy.

Source: Aakash Institute, “Tissue System and Types” (aakash.ac.in)

Endarch Xylem Maturation

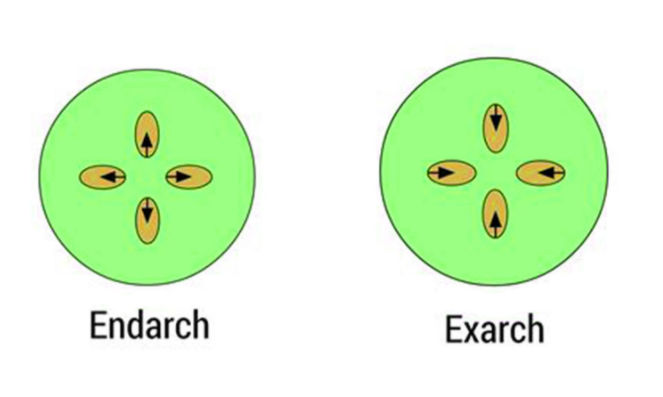

Within each vascular bundle, stem xylem matures endarch — protoxylem (the first-formed, narrower conducting cells) lies toward the pith (center), with metaxylem (later-formed, wider cells) maturing toward the periphery. This is the direct opposite of root xylem, which matures exarch (protoxylem outermost) — see Root Anatomy. The endarch/exarch contrast is structurally consistent with each organ’s developmental direction: in the stem, the procambium differentiates outward from the central pith region; in the root, it differentiates inward from the peripheral pericycle region.

Source: Aakash Institute, “Tissue System and Types” (aakash.ac.in)

Comparative Structures

Common Exam Questions

• “Distinguish a eustele from an atactostele, and identify which is characteristic of monocots.”
• “Explain why axillary buds give lateral branches an exogenous origin, and contrast this with the origin of lateral roots.”
• “Explain why monocot stems typically cannot undergo secondary growth, referencing bundle arrangement and bundle type.”
• “Distinguish endarch from exarch xylem maturation, and state which is characteristic of stems versus roots.”
• “Given a stem cross-section showing vascular bundles scattered with no clear pith, identify whether the plant is a monocot or dicot.”

Visual Reference

Interactive

• Eustele vs. atactostele toggle (click-through SVG/JS, no new library) — a stem cross-section frame that toggles between a ring-arranged dicot eustele (pith/cortex labeled) and a scattered monocot atactostele, so the bundle-distribution contrast reads as a direct swap.

• Node/internode/bud click-through (SVG/JS, no new library) — a stem segment diagram where clicking a node reveals the axillary bud and leaf attachment, reinforcing the exogenous branch origin visually before the root-anatomy endogenous contrast is introduced.

(Static images are placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here.)

Practice Problems

1. A stem cross-section shows a single ring of vascular bundles surrounding a distinct central pith. Identify the stele type and whether the plant is likely a monocot or dicot.
2. Explain why pith rays are structurally significant beyond simply “filling space” between vascular bundles.
3. Explain why a closed vascular bundle cannot develop a vascular cambium, referencing the bundle’s internal structure.
4. Contrast the origin of a lateral branch with the origin of a lateral root, naming the tissue each arises from.
5. Explain why stem xylem matures endarch while root xylem matures exarch, in terms of each organ’s direction of tissue differentiation.
