Human Nervous System

Overview

The nervous system is nervous tissue (see Body Plans) organized into a signal-processing network. This page is structural: anatomical divisions, neuron/glial/synapse anatomy, detailed brain and spinal cord regional organization, and the peripheral/autonomic nerve plan. Sense-organ structure (eye, ear) is deep enough to warrant its own page — see Human Sensory Organs. Cephalization (introduced on the Body Plans page) means this page carries a disproportionate share of IBO exam weight relative to its position in the reading order.

Key Concepts

Anatomical Divisions

    graph TD;
    NS["Nervous System"] --> CNS["Central Nervous System (CNS)"];
    NS --> PNS["Peripheral Nervous System (PNS)"];
    CNS --> Brain;
    CNS --> SpinalCord["Spinal Cord"];
    PNS --> Somatic["Somatic (voluntary, skeletal muscle)"];
    PNS --> Autonomic["Autonomic (involuntary)"];
    Autonomic --> Sympathetic["Sympathetic ('fight or flight')"];
    Autonomic --> Parasympathetic["Parasympathetic ('rest and digest')"];

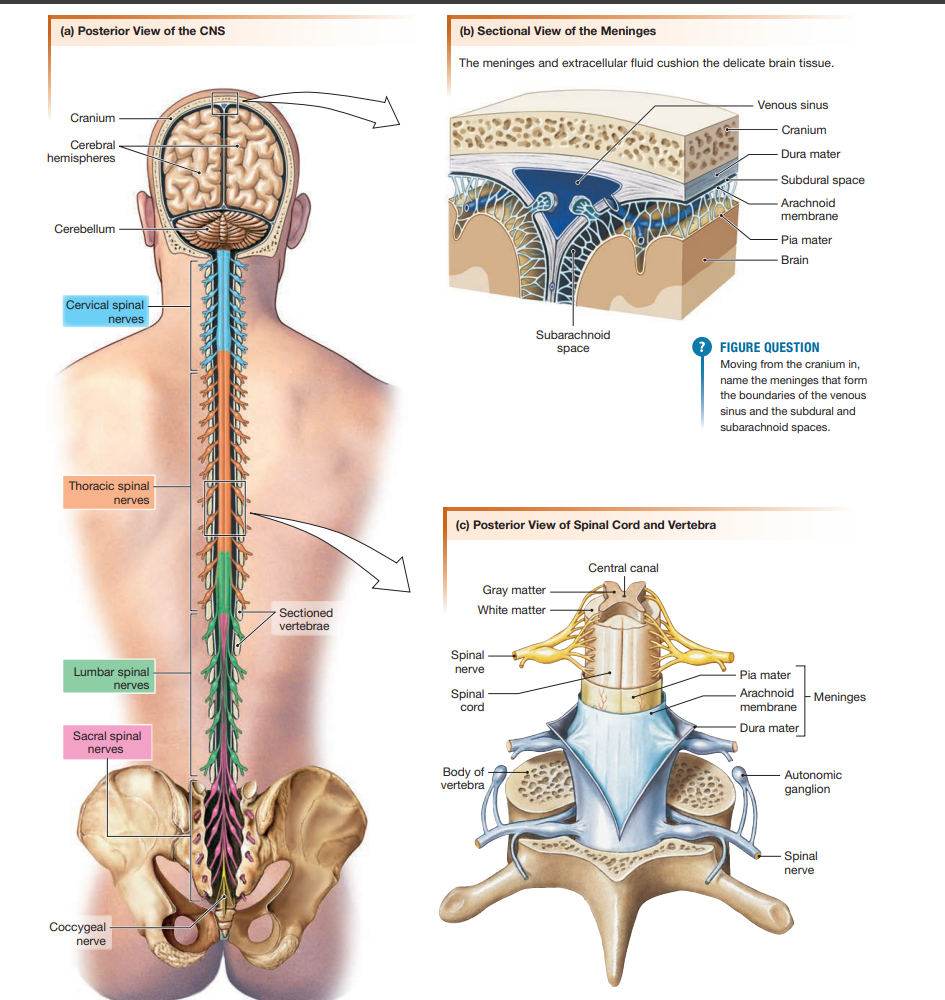

The CNS (brain + spinal cord) is protected by bone (skull, vertebral column — see Human Skeletal System), three connective-tissue meninges — dura mater (outermost, tough, two-layered, encloses venous sinuses draining the brain), arachnoid mater (middle, web-like, encloses the subarachnoid space, through which CSF circulates and major blood vessels run), pia mater (innermost, delicate, adheres directly to the brain/spinal cord surface, following every gyrus and sulcus) — and cerebrospinal fluid.

Source: Dee Unglaub Silverthorn, Human Physiology: An Integrated Approach*.*

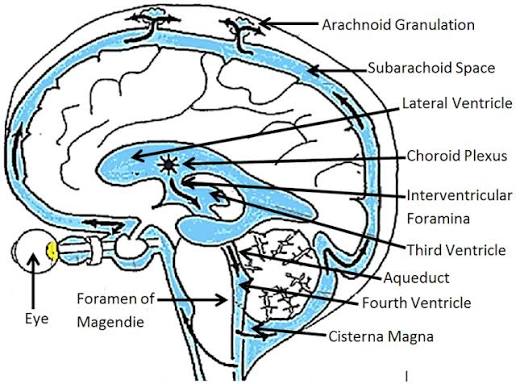

CSF is produced by the choroid plexus (specialized, highly vascularized ependymal tissue) within the brain’s four ventricles (paired lateral ventricles, third ventricle, fourth ventricle, connected in sequence), circulates through the ventricular system and central canal of the spinal cord, exits into the subarachnoid space, and is reabsorbed into the venous system via arachnoid granulations. Structurally, CSF performs three roles: mechanical cushioning (the brain effectively floats, reducing its effective weight against the skull), chemical stability (a tightly regulated extracellular environment for neurons), and buoyant/waste clearance function. Obstruction of this circulation pathway (e.g. at a narrow ventricular connection) causes CSF to accumulate proximally — the structural basis of hydrocephalus, a common applied-anatomy question.

Source: user-sourced (originally attempted via ResearchGate, which returned 403 Forbidden on direct fetch). Exact match, full pathway traced end to end.

The PNS comprises 12 pairs of cranial nerves (emerging directly from the brain/brainstem) and 31 pairs of spinal nerves (emerging from the spinal cord between vertebrae, each formed by the union of a dorsal and ventral root — see below).

Neuron and Synapse Structure

A neuron has three structural regions: dendrites (branched, receive synaptic input, increasing surface area for connections), cell body (soma) (nucleus, most organelles, integrates incoming signals), and axon (single, conducts an action potential away from the soma, ending in axon terminals).

Resting membrane potential (structurally maintained by unequal ion distribution across the membrane, set up by the Na⁺/K⁺-ATPase pump and leak channels) and the action potential (a rapid, self-propagating depolarization driven by sequential opening of voltage-gated Na⁺ channels, then voltage-gated K⁺ channels) are physiological processes with a direct structural dependency worth stating precisely: axons wrapped in myelin (produced by Schwann cells in the PNS, one Schwann cell per axon segment; by oligodendrocytes in the CNS, one oligodendrocyte extending processes to myelinate segments of several different axons — a structural PNS/CNS difference worth remembering) conduct faster because voltage-gated Na⁺ channels are concentrated at the unmyelinated gaps, the nodes of Ranvier, where the action potential regenerates and appears to “jump” node to node (saltatory conduction) rather than regenerating continuously along the entire membrane.

At the axon terminal, a chemical synapse transmits the signal to the next cell: an action potential arriving at the terminal opens voltage-gated Ca²⁺ channels, triggering synaptic vesicles (membrane-bound sacs of neurotransmitter) to fuse with the presynaptic membrane and release their contents into the synaptic cleft; neurotransmitter diffuses across and binds postsynaptic receptors, altering the postsynaptic cell’s membrane potential (excitatory or inhibitory depending on the specific neurotransmitter-receptor pair). This same structural logic — vesicle fusion, cleft diffusion, receptor binding — is reused at the neuromuscular junction, detailed on the Human Muscular System page.

Other glial cells, largely supportive rather than signal-conducting: astrocytes (CNS, form the blood-brain barrier by inducing tight junctions in brain capillary endothelium, provide metabolic support and regulate the extracellular ion environment), microglia (CNS, immune defense — the CNS’s resident macrophage-like cells), ependymal cells (CNS, line the ventricles, produce CSF as part of the choroid plexus).

Gray matter vs. white matter: gray matter is composed mainly of neuron cell bodies, dendrites, and unmyelinated fibers (found at the cerebral/cerebellar cortex, and centrally within the spinal cord); white matter is composed of myelinated axon tracts (myelin’s lipid content gives it a pale color) and lies centrally in the brain, peripherally in the spinal cord — the brain and spinal cord invert this arrangement relative to each other, a frequently tested point.

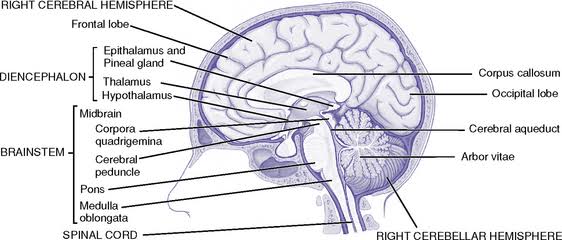

Major Brain Regions

Source: nursekey.com, citing Applegate, The Anatomy and Physiology Learning System*, 2nd ed., Saunders, 2000.*

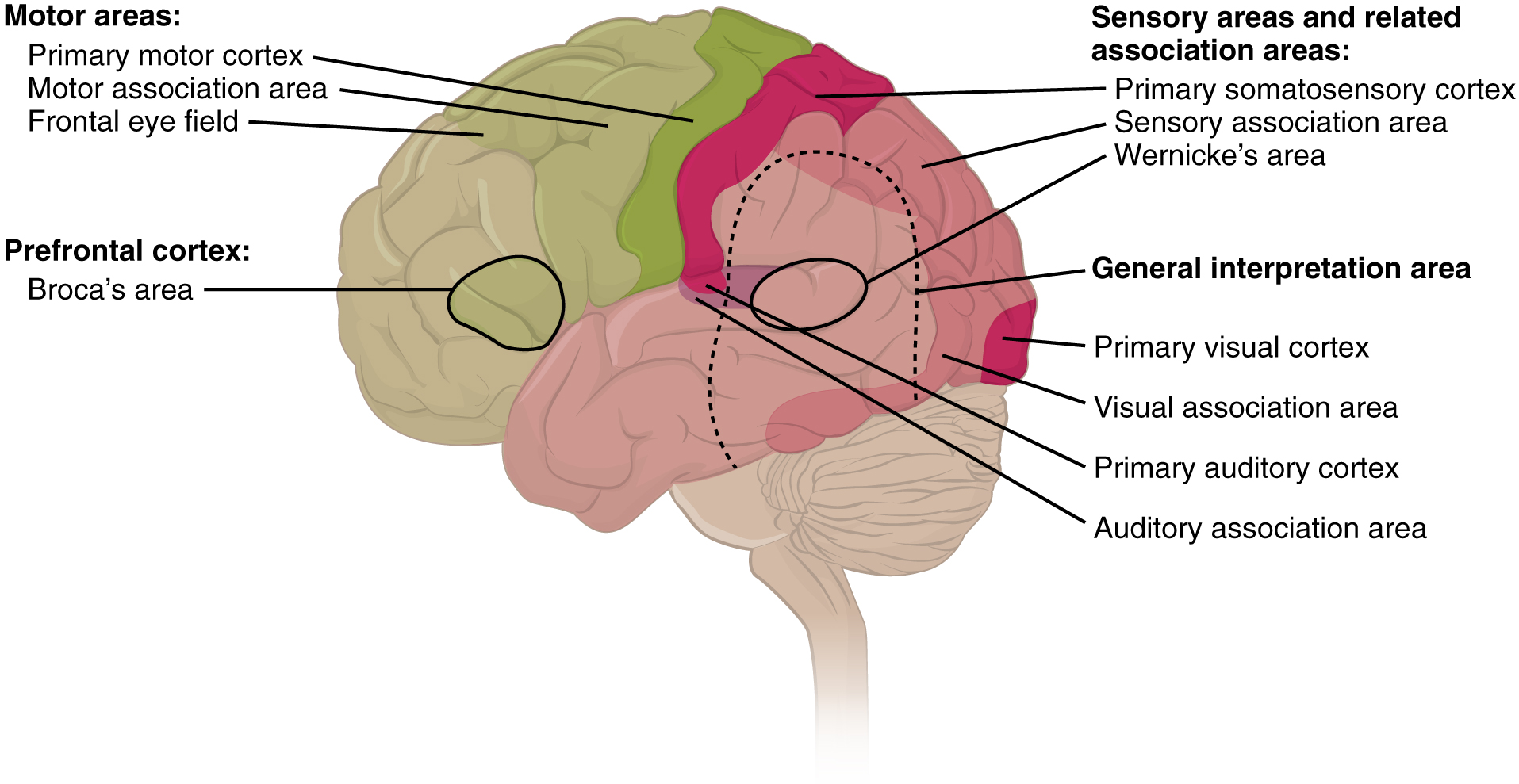

Cerebral cortex functional areas, a further level of structural detail within the cerebrum, high-yield for IBO: the primary motor cortex (precentral gyrus, frontal lobe — initiates voluntary movement, organized somatotopically as a “motor homunculus” with body-region representation proportional to the precision of control required, not literal body size) and primary somatosensory cortex (postcentral gyrus, parietal lobe, directly posterior to the motor cortex — receives touch/pressure/temperature/pain input, also somatotopically organized) sit on either side of the central sulcus. Language-specific areas are typically lateralized to one hemisphere (left, in most people): Broca’s area (frontal lobe — speech production; damage produces halting, effortful speech with preserved comprehension) and Wernicke’s area (temporal lobe — language comprehension; damage produces fluent but nonsensical speech), connected by a white-matter tract (the arcuate fasciculus) — a classic structure-function dissociation exam topic. Beneath the cortex, the basal ganglia (a group of subcortical gray-matter nuclei) regulate voluntary movement initiation and smoothing (their degeneration is the structural basis of Parkinson’s disease, a useful applied-anatomy reference point), and the limbic system (including the hippocampus, for memory consolidation, and the amygdala, for emotional processing, both in the temporal lobe) links cortical processing to emotional and memory function.

Source: user-sourced textbook-style figure

Spinal Cord Organization and the Reflex Arc

In cross-section, the spinal cord shows a butterfly/H-shaped core of gray matter (dorsal and ventral horns, plus lateral horns at thoracic/upper lumbar levels containing sympathetic preganglionic neurons) surrounded by white matter tracts (ascending sensory tracts and descending motor tracts). Dorsal root = sensory (afferent) input entering the cord, with cell bodies clustered in the dorsal root ganglion just outside the cord; ventral root = motor (efferent) output leaving the cord — a structural asymmetry (the Bell-Magendie law) that is a reliable exam fact. Dorsal and ventral roots merge just distal to the dorsal root ganglion to form a single mixed spinal nerve.

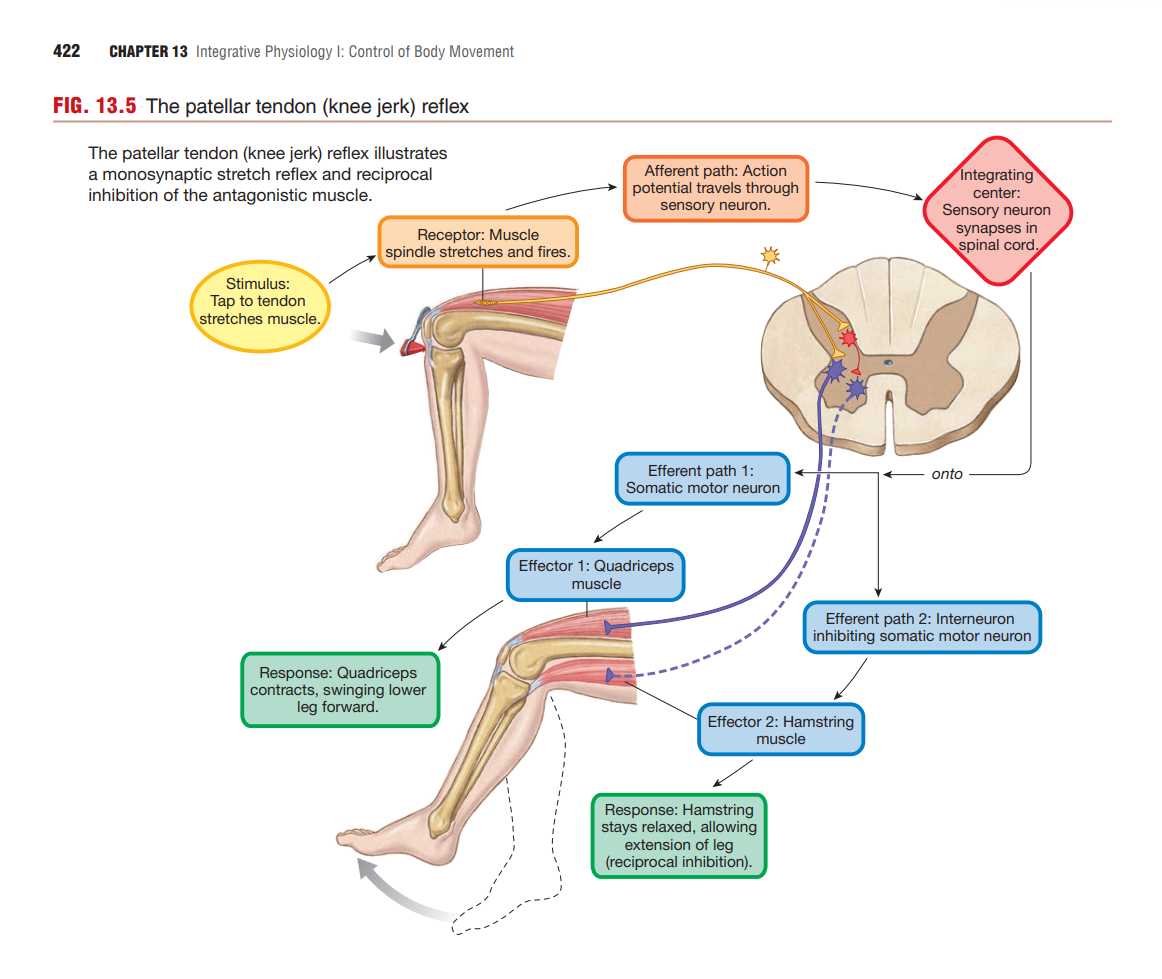

The reflex arc is the clearest anatomical demonstration of spinal cord organization, using the knee-jerk (patellar) reflex as the standard example: stretch receptor in the quadriceps muscle → sensory neuron → dorsal root → direct synapse onto a motor neuron in the ventral horn (a monosynaptic reflex, the fastest reflex type, since it involves no interneuron) → ventral root → motor neuron → quadriceps contraction — occurring without requiring the brain, though the brain normally receives a parallel signal and can modulate the reflex.

Source: Dee Unglaub Silverthorn, Human Physiology: An Integrated Approach (Fig. 13.5; also used on Animal Physiology: Nervous System Physiology).

Cranial and Spinal Nerves

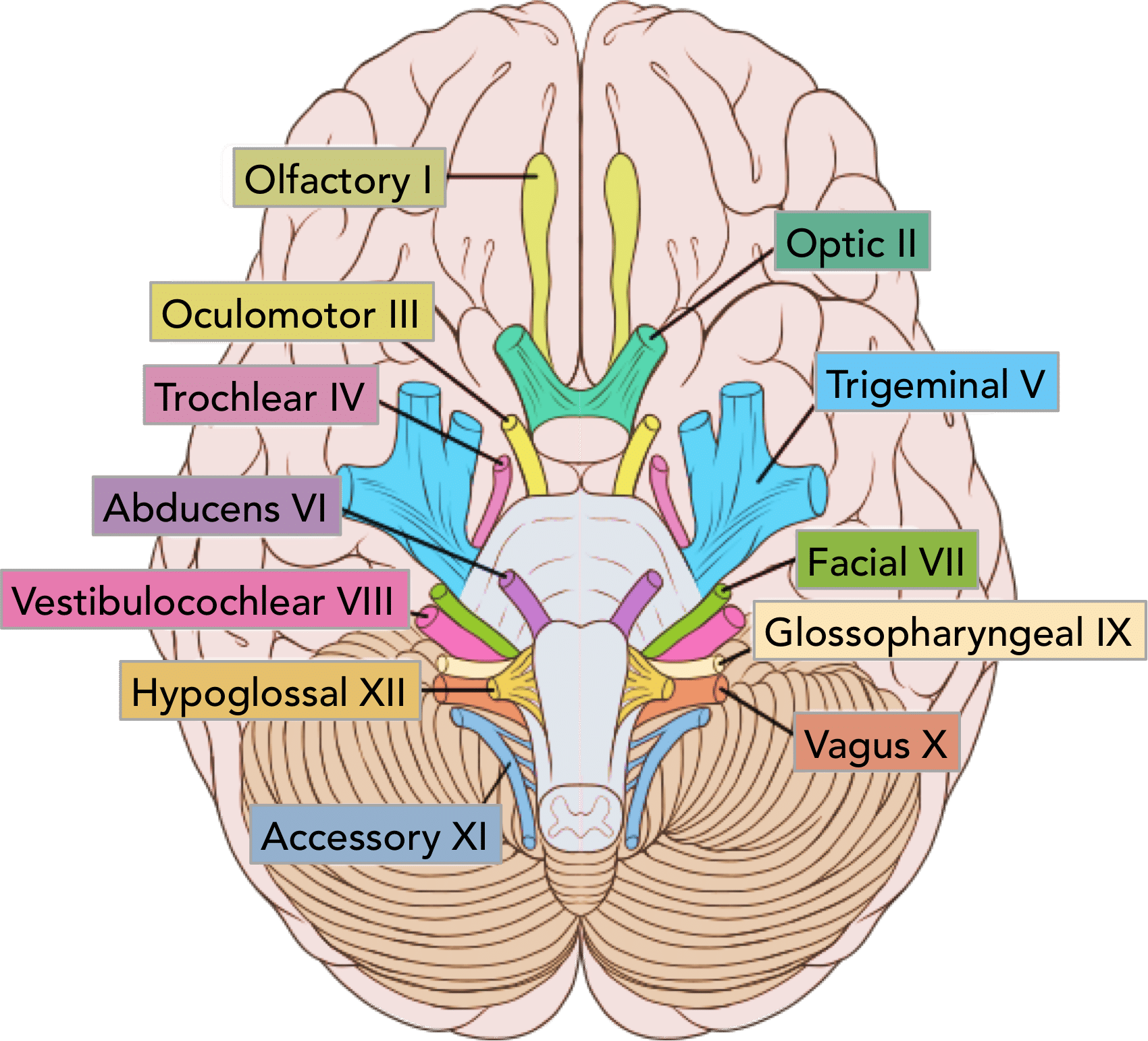

The 12 pairs of cranial nerves are conventionally numbered I–XII and each carries a specific, named functional role — a standard IBO memorization/mapping topic: I Olfactory (smell), II Optic (vision), III Oculomotor, IV Trochlear, VI Abducens (these three jointly control most eye-muscle movement), V Trigeminal (facial sensation, jaw muscles), VII Facial (facial expression muscles, taste anterior 2/3 tongue), VIII Vestibulocochlear (hearing, balance), IX Glossopharyngeal (taste posterior tongue, pharynx), X Vagus (the major parasympathetic nerve to thoracic/abdominal organs — by far the most extensive distribution of any cranial nerve), XI Accessory (neck/shoulder muscles), XII Hypoglossal (tongue muscles). The 31 pairs of spinal nerves are grouped by the vertebral level they exit (8 cervical, 12 thoracic, 5 lumbar, 5 sacral, 1 coccygeal); nerves from adjacent levels often interweave into plexuses (e.g. the brachial plexus, supplying the upper limb) before redistributing into named peripheral nerves.

Source: user-sourced. Exact match — a genuine base-of-brain nerve-origin view (a candidate found via teachmeanatomy.info during sourcing turned out to be a skull-base foramina view instead, a mismatch; this saved file is the correct one).

Autonomic Nervous System Structure

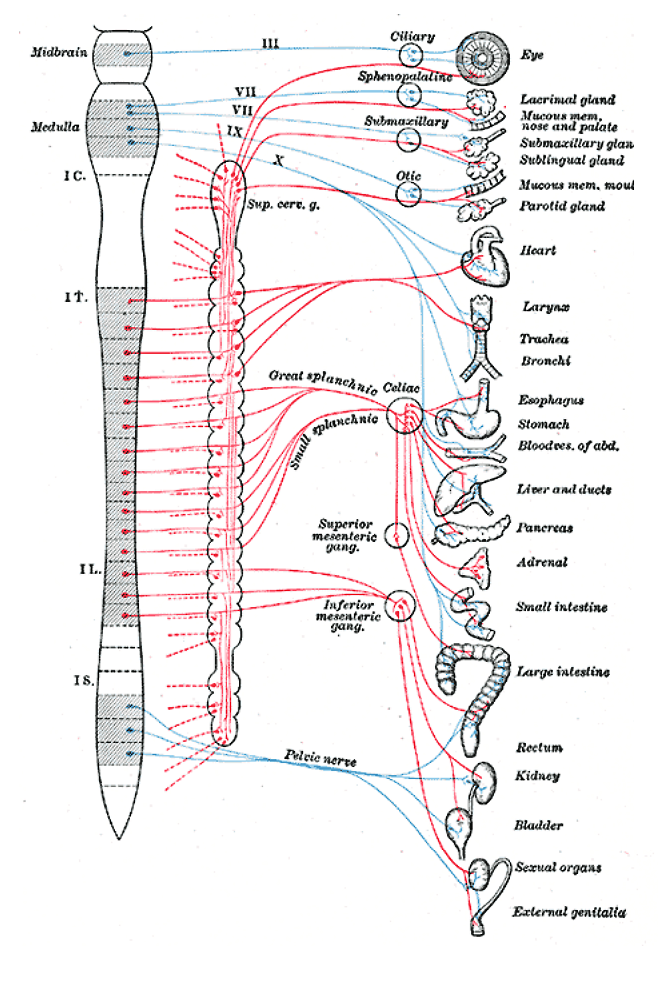

Both autonomic divisions use a two-neuron chain from CNS to target organ — a structural feature distinguishing autonomic from somatic motor pathways (which use a single motor neuron all the way to skeletal muscle): a preganglionic neuron (cell body in the CNS) synapses onto a postganglionic neuron (cell body in a peripheral autonomic ganglion), which then innervates the target organ. The two divisions differ structurally in exactly where this synapse occurs and what neurotransmitter the postganglionic neuron releases:

This preganglionic/postganglionic length difference is itself a useful structural mnemonic: sympathetic responses (widespread, rapid, “fight or flight”) are anatomically set up for broad, fast-diffusing activation from ganglia near the spinal cord, while parasympathetic responses (localized, “rest and digest”) are anatomically set up for targeted, organ-specific control from ganglia embedded in or near the organ itself.

Source: Wikimedia Commons, Gray839.png, public domain (Gray’s Anatomy, 1918). Directly visualizes the pre-/postganglionic length asymmetry described in the text.

Comparative Structures

The tripartite CNS/PNS/autonomic organization and core neuron/synapse structure are conserved across all vertebrates, but relative brain-region proportions differ substantially by lifestyle and taxon — expanded on across the Vertebrate Anatomy tier. Invertebrate nervous systems trade the centralized brain + spinal cord plan for nerve nets (cnidarians, no true brain) or ganglia (a more distributed plan, seen in annelids and arthropods, including the notably centralized cephalopod brain) — see Invertebrate Body Plans I and II.

Common Exam Questions

• “Explain, structurally, why damage to the ventral root causes motor but not sensory deficits.”
• “A patient has fluent but nonsensical speech with intact comprehension of written instructions. Which cortical area is most likely damaged, and where is the deficit lateralized?”
• “Trace the two-neuron pathway of a sympathetic signal from the spinal cord to a target organ, naming the ganglion location and the postganglionic neurotransmitter.”
• “Explain why obstruction of CSF flow within the ventricular system causes fluid accumulation proximal to the blockage, and name the resulting condition.”
• “A CNS axon and a PNS axon are both myelinated. Name the glial cell responsible in each case and describe one structural difference between them.”

Visual Reference

Interactive

(Implemented inline above: the myelinated vs. unmyelinated conduction race sits directly below the myelin/saltatory conduction paragraph, and the knee-jerk reflex arc walkthrough sits directly below the reflex arc image.)

Static

(Static images are placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here.)

Practice Problems

1. Name the three meningeal layers from outermost to innermost and state which one directly contacts brain tissue.
2. A patient loses fine motor coordination but retains the ability to initiate movement. Which brain region is most likely affected?
3. Explain why gray matter is central in the spinal cord but peripheral (cortical) in the brain, in terms of what gray matter is made of.
4. Name the cranial nerve responsible for the majority of parasympathetic output to the thoracic and abdominal organs.
5. Distinguish the sympathetic and parasympathetic divisions by ganglion location and preganglionic/postganglionic neuron length, and explain how this structural difference supports each division’s characteristic response pattern.
