Stomatal Physiology & Gas Exchange

Overview

Leaf Anatomy described the stomatal complex structurally — paired guard cells with radially oriented cellulose microfibrils, flanked by subsidiary cells — and named the consequence (the pore opens or closes) without covering what actually drives it. This page covers that mechanism: the ion movements that change guard cell turgor and therefore shape, the environmental signals that trigger opening and closing, and why the stomatal pore is fundamentally a compromise structure, open only as much as the plant’s current water and carbon budget can justify.

Key Concepts

The Guard Cell Turgor Mechanism

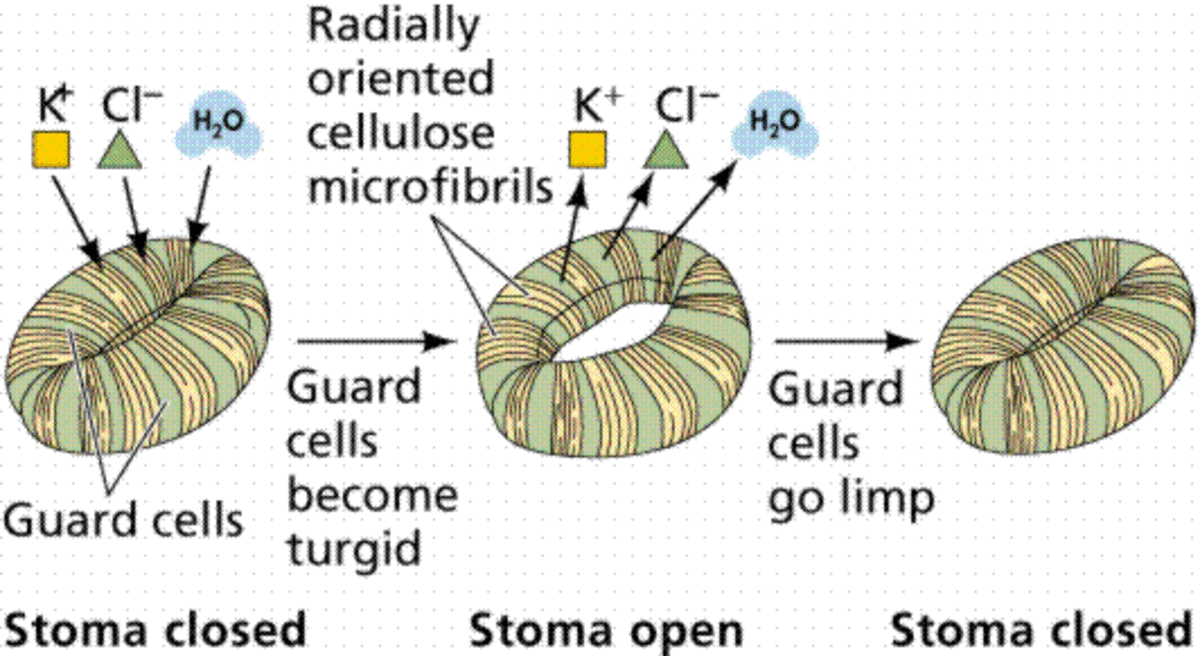

A guard cell’s radial micellation (cellulose microfibrils wrapped around the cell like hoops around a barrel, described structurally on Leaf Anatomy) means the cell can only elongate along its length, not expand in girth, as turgor pressure rises. Because the two guard cells of a pair are joined at both ends, and their inner (pore-facing) walls are thicker and less elastic than their outer walls, this length-only elongation forces each guard cell to bow outward away from the pore as it gains turgor — opening the stomatal aperture between them. Losing turgor reverses the bow, closing the pore. The entire mechanism therefore reduces to one question: what makes the guard cell gain or lose turgor?

• Opening: H⁺-ATPases in the guard cell plasma membrane actively pump protons out, hyperpolarizing the membrane. This hyperpolarization drives K⁺ influx through voltage-gated inward-rectifying K⁺ channels, and Cl⁻ and malate²⁻ (synthesized within the guard cell from starch breakdown) accumulate alongside the K⁺ to balance charge. The rising solute concentration lowers the guard cell’s solute potential (Ψₛ), water follows osmotically (see Water Transport & Transpiration for the Ψ framework), turgor rises, and the pore opens.
• Closing: Outward-rectifying K⁺ channels and anion channels open instead, releasing K⁺, Cl⁻, and malate²⁻ from the guard cell; solute potential rises (becomes less negative), water leaves osmotically, turgor falls, and the pore closes.

Source: DNA of Bioscience (blogspot)

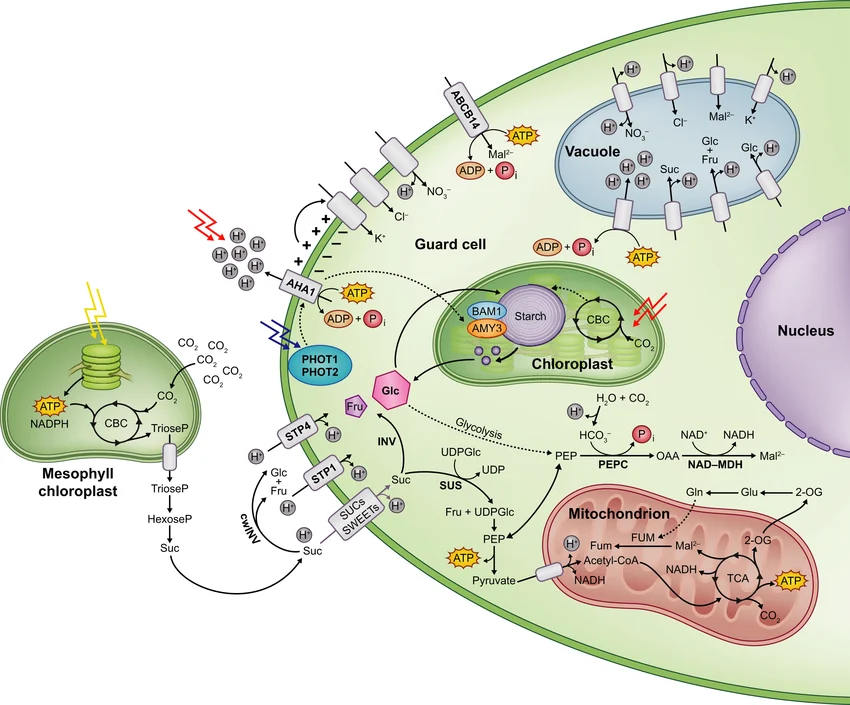

Source: ResearchGate, fig. 1, “Guard cell membrane ion transport and carbon metabolism during stomatal opening”

Subsidiary cells (see Leaf Anatomy) act as a local ion and water reservoir for this cycle, exchanging K⁺ and water with the guard cells fast enough to support opening/closing on a timescale of minutes rather than requiring transport from distant tissue.

Environmental Signals Controlling Aperture

Guard cells integrate several independent signals into the single opening/closing decision above:

• Blue light — detected by phototropin photoreceptors in the guard cell plasma membrane, directly activating the H⁺-ATPase and driving opening independent of photosynthesis; this is a dedicated blue-light response, not simply a byproduct of photosynthetic activity in the guard cell’s own chloroplasts (which are present but sparse and contribute only modestly to guard cell energy metabolism).
• CO₂ concentration — low intercellular CO₂ (drawn down by active photosynthesis in the mesophyll, see Carbon Fixation) promotes opening; rising CO₂ promotes closing. This creates a feedback loop tying stomatal aperture to the plant’s own photosynthetic demand for CO₂, independent of light.
• Abscisic acid (ABA) — synthesized in roots and leaves under water stress (falling soil water potential, wilting) and transported to guard cells, where it triggers a signaling cascade (cytosolic Ca²⁺ increase, cytosolic pH increase) that activates the outward K⁺/anion channels directly, forcing closure regardless of light or CO₂ conditions. ABA-triggered closure is the plant’s principal defense against catastrophic water loss and is developed further, alongside ABA’s other roles, on Plant Hormones.

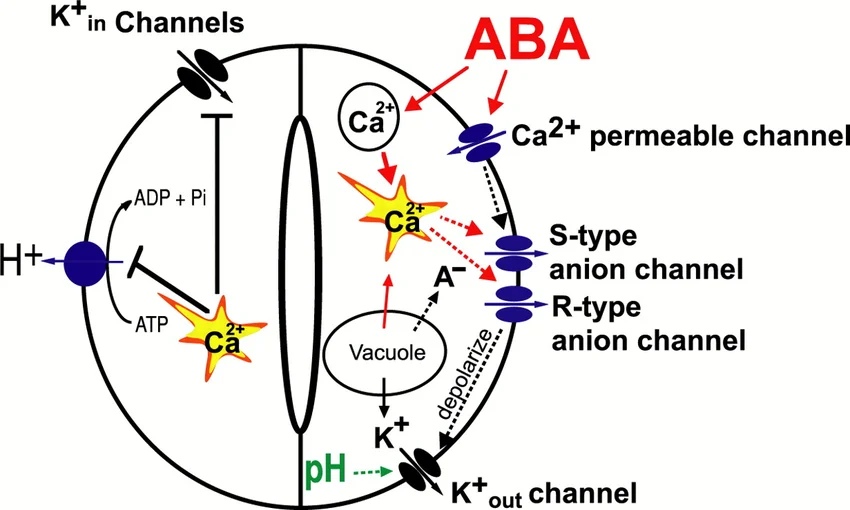

Source: ResearchGate, fig. 2, “A guard cell model illustrating the proposed functions of ion channels in ABA signaling”

• Circadian rhythm — most species show endogenous opening near dawn and closing near dusk even under constant experimental conditions, layering a time-of-day baseline on top of the acute signals above.

The Photosynthesis-Transpiration Trade-off

Every stoma is a compromise: opening it admits CO₂ for the Calvin cycle (see Carbon Fixation: Calvin Cycle, Photorespiration & C4/CAM Biochemistry) but simultaneously allows water vapor to escape down the same concentration gradient, since the pore cannot be selectively permeable to one gas and not the other. This trade-off is quantified as water-use efficiency (moles of CO₂ fixed per mole of water transpired), and it is the underlying reason C4 and CAM anatomy and biochemistry exist at all — both are, at the biochemical level covered on the Carbon Fixation page, strategies to fix more carbon per unit of stomatal opening (C4) or to open stomata only when evaporative demand is lowest (CAM, opening at night), rather than alternative photosynthetic pathways adopted for their own sake.

Comparative Structures

Common Exam Questions

• “Explain why radial micellation of the guard cell wall causes the cell to bow outward, rather than simply swell uniformly, as turgor pressure rises.”
• “Trace the ion movements underlying stomatal opening, starting from H⁺-ATPase activation and ending with guard cell turgor increase.”
• “Explain how ABA closes stomata even under bright blue light and low intercellular CO2, referencing the specific signaling step that overrides the opening pathway.”
• “Explain why stomatal opening is inherently a trade-off, and identify the single physical reason a stoma cannot admit CO2 without also losing water vapor.”
• “Explain the functional role of subsidiary cells in the stomatal opening/closing cycle.”

Visual Reference

Interactive

• Guard cell ion-flux animator (SVG/JS, no new library) — a single stomatal complex cross-section with toggleable “opening” and “closing” states; each toggle animates the relevant ion channels/pumps activating, K+/Cl-/malate accumulating or leaving, and the guard cell pair visibly bowing open or relaxing closed in response.

• Multi-signal stomatal aperture simulator (sliders for light, CO2, and ABA level) — adjusting each slider independently shows the resulting net aperture, making clear that ABA can force closure even with the light and CO2 sliders both set to “opening” conditions, reproducing the override relationship described in the ABA section above.

(Static images are placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here.)

Practice Problems

1. A researcher applies a drug that specifically blocks the guard cell H+-ATPase. Predict the effect on stomatal aperture under bright blue light, and explain your reasoning mechanistically.
2. Explain why intercellular CO2 concentration falls during active photosynthesis, and why this fall itself promotes further stomatal opening.
3. A wilting plant’s stomata remain closed even when moved into bright light. Identify the most likely hormonal cause and trace the signaling pathway responsible.
4. Explain why a mutant guard cell lacking properly oriented radial cellulose microfibrils would fail to open normally even with functional ion channels.
5. Using the concept of water-use efficiency, explain why CAM plants open their stomata at night rather than during the day.
