Leaf Anatomy

Overview

The leaf is the plant’s primary photosynthetic organ, and its internal structure is organized almost entirely around maximizing light capture on one side and gas exchange on the other, sandwiched around a distribution network of tiny vascular bundles. This page covers that internal organization in detail, then how it’s specifically modified in C4 and CAM plants — structural adaptations that solve the same core problem (photorespiration under hot, dry conditions) with two different anatomical strategies.

Key Concepts

External Structure and Venation

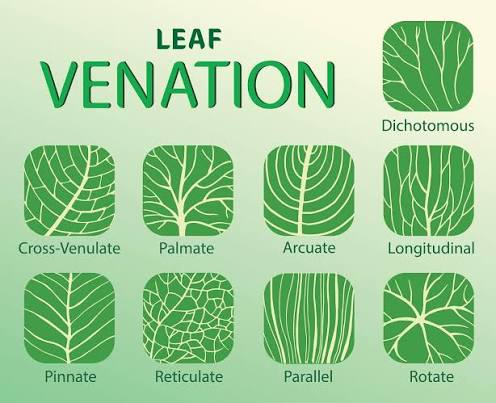

A typical leaf has a flattened blade (lamina) attached to the stem by a petiole (absent in sessile leaves); some species also bear paired stipules at the petiole base. Leaves are simple (one undivided blade) or compound (blade divided into leaflets, each resembling a small simple leaf but lacking its own axillary bud — the presence of an axillary bud at the base is the definitive structural test distinguishing a compound leaf’s leaflet from a simple leaf on a branch). Venation pattern is a fast, reliable practical-identification marker: parallel venation (major veins run alongside each other along the blade’s length, connected by fine cross-veins, characteristic of monocots) versus reticulate (net) venation (veins branch and rejoin repeatedly in a network, characteristic of dicots, itself subdivided into pinnate — one central midrib with lateral veins branching off — and palmate — several major veins radiating from a single point at the blade base).

Source: user-sourced (Facebook educational post)

Mesophyll Organization

Between the upper and lower epidermis, the photosynthetic ground tissue (mesophyll) is organized into two structurally and functionally distinct layers in most dicot leaves:

• Palisade mesophyll — one or more layers of tall, columnar cells packed tightly together directly beneath the upper epidermis, densely filled with chloroplasts. The columnar shape and tight packing orient the maximum chloroplast surface area perpendicular to incoming light, and the layer’s position on the upper (typically more illuminated) leaf face is itself a light-capture adaptation.
• Spongy mesophyll — irregularly shaped, loosely packed cells beneath the palisade layer, with substantial intercellular air space. The loose packing maximizes internal surface area exposed to the air spaces connected to stomata, favoring gas diffusion (CO₂ in, O₂ and water vapor out) over light capture — a direct structural division of labor between the two mesophyll layers.

Leaves with palisade mesophyll on one face only and facing predominantly one direction (most horizontally held dicot leaves) are dorsiventral; leaves with palisade mesophyll on both faces, or mesophyll with no clear palisade/spongy distinction at all (common in many monocots and in vertically oriented leaves that receive similar light on both sides), are isobilateral.

Leaf Veins

Each vein is a small vascular bundle (see Xylem, Phloem & Vascular Tissue) embedded in the mesophyll, consistently oriented xylem toward the upper (adaxial) side, phloem toward the lower (abaxial) side — the leaf’s version of the same polarity xylem/phloem show in stems. Each vein is wrapped in a bundle sheath (parenchyma or, in some species, sclerenchyma), and in many species a bundle sheath extension of colorless cells runs from the bundle sheath to one or both epidermal layers, structurally partitioning the mesophyll into discrete compartments and (where the extension reaches the epidermis) providing a lower-resistance path for water movement out to the leaf surface.

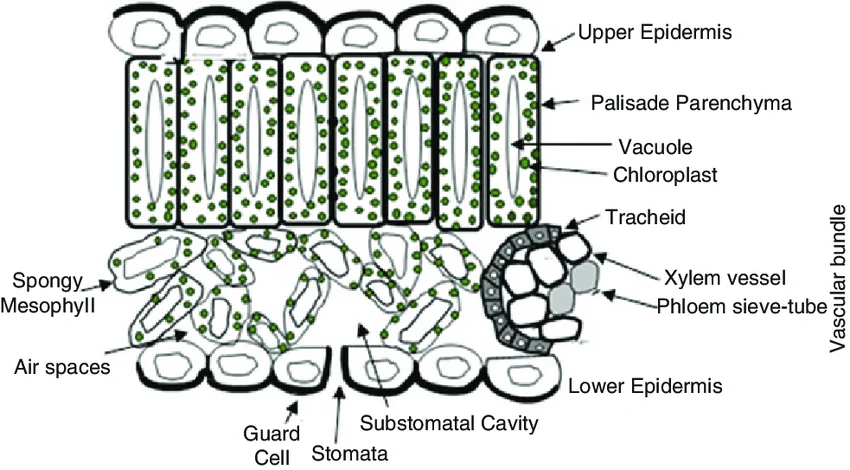

Source: ResearchGate, fig. 2, “Dorsiventral cross-section of a dicot leaf with the adaxial surface at the top”

The Stomatal Complex

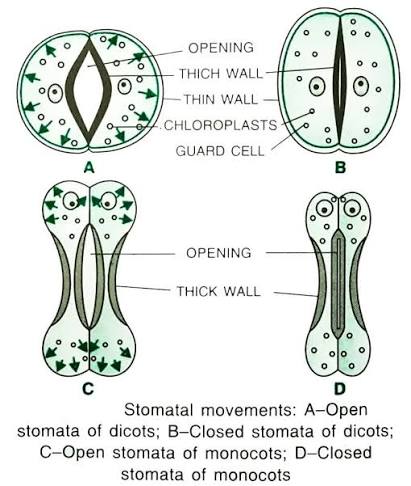

Gas exchange across the otherwise cuticle-sealed epidermis happens through stomata: paired guard cells flanking a central pore, together with adjacent subsidiary cells (epidermal cells structurally and functionally distinct from ordinary epidermal cells, assisting guard cell function) forming the full stomatal complex. Guard cell shape differs systematically by taxon — kidney-shaped in most dicots and many monocots, versus dumbbell-shaped (narrow ends, broader bulbous ends) in grasses and other Poaceae — and in both cases the cellulose microfibrils of the guard cell wall are oriented radially around the cell’s long axis (radial micellation), a structural feature that constrains how the cell can bow when internal turgor pressure changes, opening or closing the pore between the two guard cells (the physiological trigger for turgor change itself belongs to Plant Physiology).

Source: Science Arena, “Anatomy of Flowering Plants” (sciencearena.in)

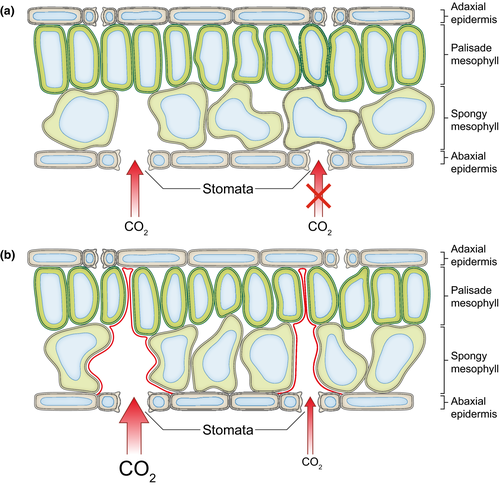

Below the pore, a substomatal chamber — an enlarged air space in the mesophyll directly beneath the stomatal complex — connects the pore to the surrounding spongy mesophyll air space network.

Source: Plant Stomata (plantstomata.wordpress.com)

Most dorsiventral leaves are hypostomatous (stomata concentrated on the lower epidermis, reducing water loss from the more sun- and wind-exposed upper face); floating aquatic leaves are a notable structural exception, concentrating stomata on the upper (air-exposed) surface instead.

C4 (Kranz) Leaf Anatomy

In most plants (the C3 pathway), the leaf’s photosynthetic anatomy is simply the palisade/spongy mesophyll described above, with no distinct chloroplast specialization by cell position. C4 plants show a distinct structural modification, Kranz anatomy (“Kranz” = German for wreath, describing the arrangement in cross-section): an enlarged, chloroplast-rich bundle sheath forms a tight ring directly around each vascular bundle, and the mesophyll cells are arranged radially around that bundle sheath ring rather than in separate palisade/spongy layers. This specific spatial arrangement — mesophyll cells surrounding, and in direct plasmodesmatal contact with, an enlarged bundle sheath that itself surrounds the vein — is what allows C4 plants to physically separate initial CO₂ fixation (in mesophyll chloroplasts) from the Calvin cycle (in bundle sheath chloroplasts), concentrating CO₂ around Rubisco and suppressing photorespiration; the biochemical detail of that separation is Plant Physiology’s territory, but the anatomical arrangement making it possible is the leaf-structure fact tested here.

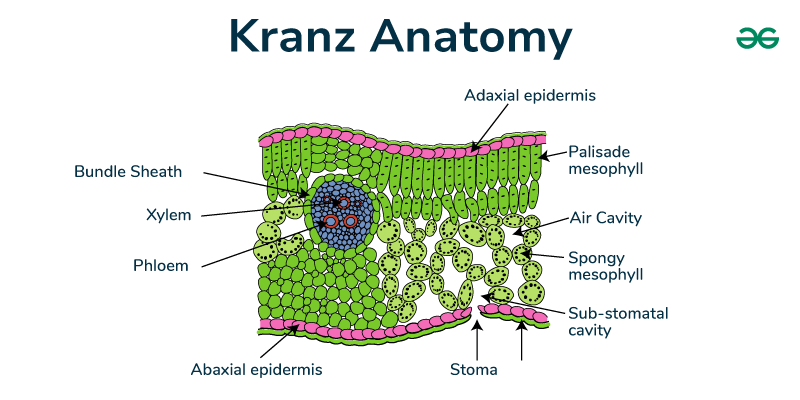

Source: GeeksforGeeks, “Kranz Anatomy” (geeksforgeeks.org)

CAM Leaf Anatomy

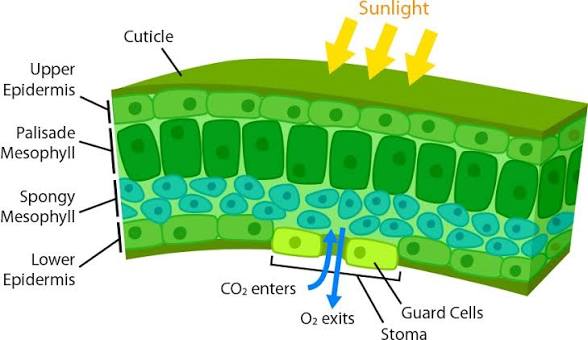

CAM (Crassulacean Acid Metabolism) plants achieve a related photorespiration-avoidance benefit through a temporal rather than spatial separation (fixing CO₂ at night, running the Calvin cycle by day using stored acid, using the same cells for both steps) — so CAM leaves lack Kranz anatomy, but show their own structural signature: thick, water-storing mesophyll with unusually large vacuoles (structural capacity to store the malic acid accumulated overnight), a thick cuticle, sunken stomata (recessed below the epidermal surface, reducing water loss further), and low surface-area-to-volume ratio overall — typically in succulent leaves or stems, an anatomical profile suited to the arid habitats where CAM is most common.

Source: Ask A Biologist, Arizona State University, “CAM Plants” (askabiologist.asu.edu)

Comparative Structures

Common Exam Questions

• “Explain the structural basis of the palisade/spongy mesophyll division of labor.”
• “Distinguish parallel from reticulate venation and identify which is characteristic of monocots.”
• “Explain why xylem consistently lies on the adaxial side of a leaf vein and phloem on the abaxial side.”
• “Describe Kranz anatomy and explain how it enables the spatial separation of CO₂ fixation from the Calvin cycle in C4 plants.”
• “Explain why CAM leaves lack Kranz anatomy despite also avoiding photorespiration, and what structural features they show instead.”
• “Explain why most leaves are hypostomatous, and identify an ecological exception.”

Visual Reference

Interactive

• Leaf cross-section layer builder (SVG/JS, no new library) — builds a dorsiventral leaf cross-section layer by layer (upper epidermis → palisade mesophyll → spongy mesophyll → vein → lower epidermis with stomata), each layer clickable for its structural role.

• C3 vs. C4 (Kranz) toggle (click-through SVG/JS, no new library) — a single vein cross-section that toggles between ordinary C3 mesophyll and Kranz anatomy, visually showing the bundle sheath enlarging and the mesophyll cells reorganizing radially around it.

(Static images are placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here.)

Practice Problems

1. A leaf cross-section shows an enlarged, chloroplast-rich bundle sheath forming a tight ring around each vein, with mesophyll cells arranged radially around it. Identify the photosynthetic pathway this anatomy supports.
2. Explain why palisade mesophyll is positioned on the upper rather than lower leaf face in most dorsiventral leaves.
3. Distinguish a compound leaf’s leaflet from a simple leaf on a stem, using one definitive structural test.
4. Explain why CAM plant tissue shows unusually large vacuoles, referencing what is stored there and when.
5. Explain the functional significance of a bundle sheath extension reaching the epidermis.
