Comparative Respiration & Circulation

Overview

The Respiratory Physiology page covered gas transport and ventilation control mechanism in general (built around the human/mammalian tidal-breathing system); the Fish & Amphibian Anatomy and Reptile & Bird Anatomy pages covered gill and avian lung structure. This page compares the actual gas-exchange efficiency these different structural solutions achieve, and covers two specific physiological challenges — breath-hold diving and chronic high-altitude exposure — that push respiratory/circulatory physiology to its limits.

Key Concepts

Gill Countercurrent Gas Exchange

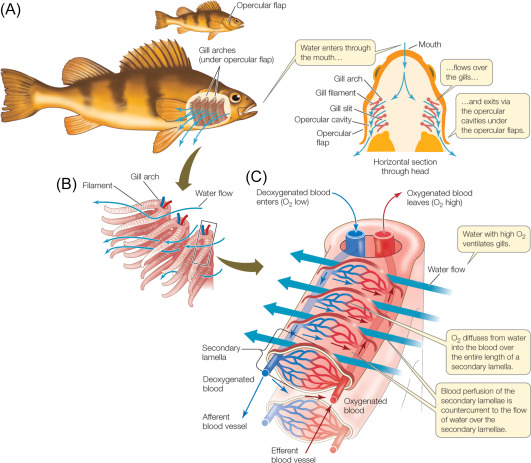

Fish gills achieve markedly higher O₂ extraction efficiency than mammalian lungs because water flows over the gill lamellae in the direction opposite to blood flow within them (see Fish & Amphibian Anatomy for lamellar structure). This countercurrent exchange arrangement means blood, however much O₂ it has already picked up, is always meeting water that is even less depleted of O₂ further along the exchange surface — maintaining a favorable diffusion gradient along the entire length of the gill, rather than the gradient collapsing as blood and water equilibrate (as it would in a co-current, same-direction arrangement). This is the same counter-flow logic already seen twice elsewhere in this section — the renal countercurrent multiplier and countercurrent heat exchange in limbs (see Homeostasis & Osmoregulation and Comparative Thermoregulation) — here applied to gas rather than solute or heat exchange, and it allows fish gills to extract up to ~80% of dissolved O₂ from water passing over them.

    graph LR;
    subgraph Water flow
    W1["High O2"] --> W2["Medium O2"] --> W3["Low O2"]
    end
    subgraph Blood flow opposite direction
    B3["Low O2"] --> B2["Medium O2"] --> B1["High O2"]
    end


Source: ScienceDirect Topics — Gill

Tidal Ventilation: The Mammalian Limit

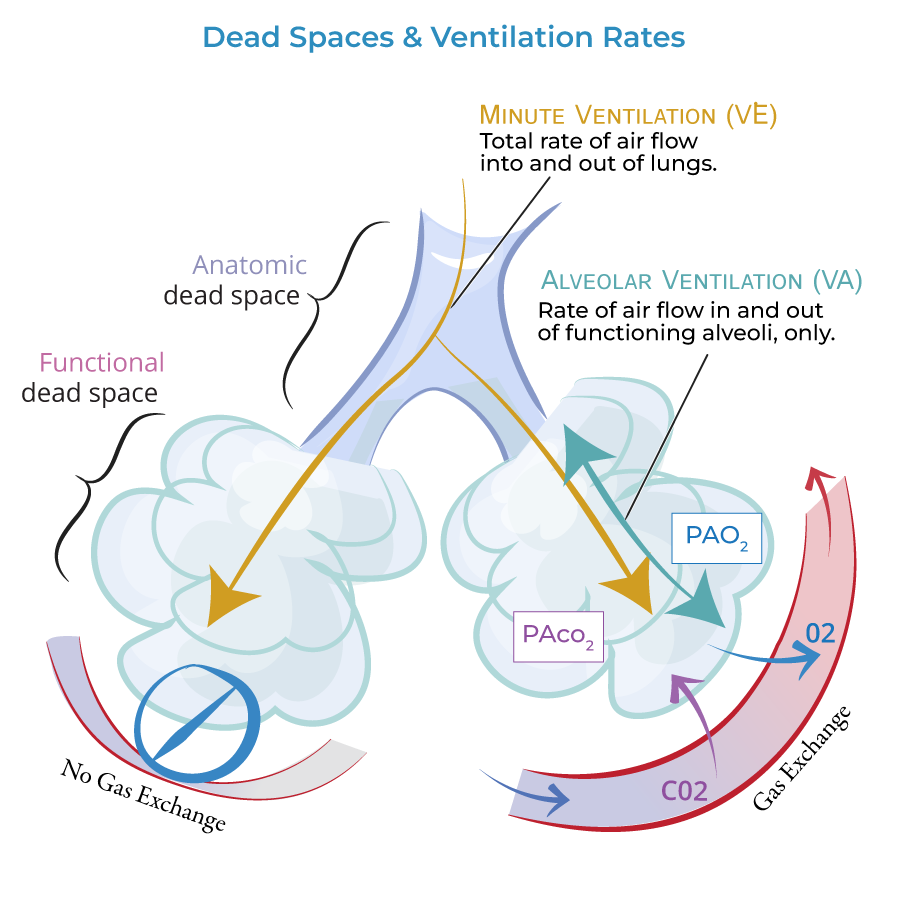

Mammalian lungs (see Human Respiratory System) are tidal: air moves in and out through the same passageway, meaning fresh incoming air always mixes with residual, already gas-exchanged air remaining in the airways (“dead space”) from the previous breath, and alveolar air is never fully replaced in a single breath. This co-mingling structurally caps mammalian gas-exchange efficiency well below the countercurrent gill system’s — typically extracting only ~25% of the O₂ present in inhaled air, a direct structural cost of a tidal, blind-ended lung design.

Source: ditki.com

Unidirectional Bird Lung Ventilation

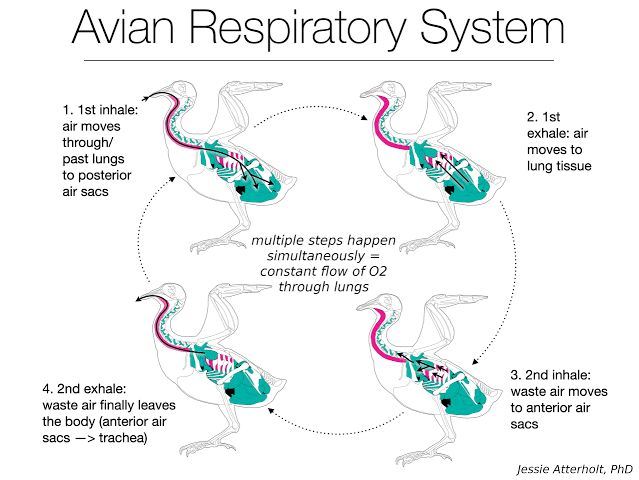

Birds achieve substantially higher gas-exchange efficiency than mammals via a structurally distinct solution: air flows unidirectionally through rigid, tube-like parabronchi (rather than in and out of blind-ended alveoli), driven by a system of air sacs (see Reptile & Bird Anatomy) that act as bellows, requiring two full breath cycles for a single volume of air to completely transit the system (inhaled air first fills posterior air sacs, then on the next cycle passes through the parabronchi to anterior air sacs before being exhaled) — but ensuring continuous, unidirectional, fresh airflow across the gas-exchange surface during both inhalation and exhalation, unlike the mammalian tidal system where gas exchange only usefully occurs on inhalation. Blood flow across the parabronchi runs roughly perpendicular to airflow (cross-current exchange — less efficient than true countercurrent, but still substantially better than tidal ventilation), contributing to birds’ well-documented ability to sustain activity at high altitudes where mammalian tidal ventilation struggles.

Source: Jessie Atterholt, PhD

Insect Tracheal Systems: Direct Diffusion

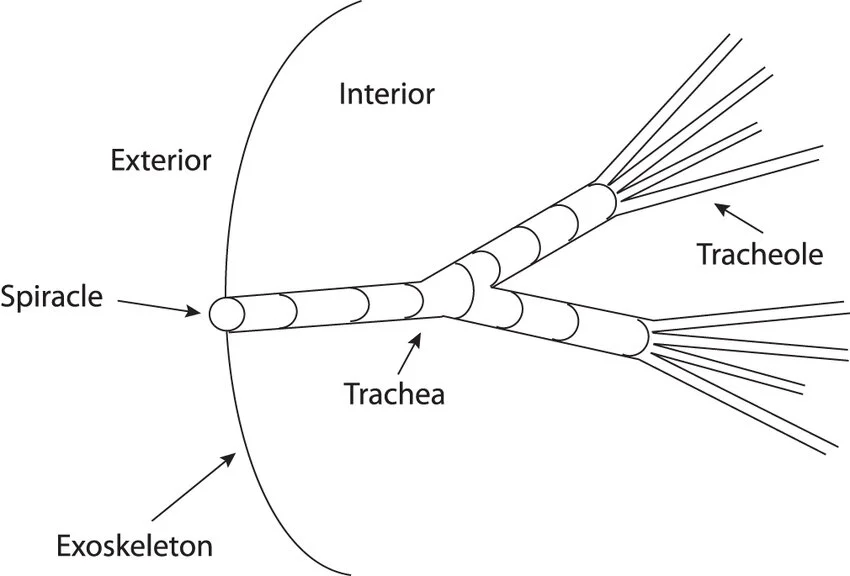

Insects bypass the circulatory system for gas transport entirely: external spiracles (valved openings, see Invertebrate Body Plans II for exoskeletal structure) lead to a branching network of tracheae and progressively finer tracheoles that extend directly to essentially every individual cell, delivering O₂ and removing CO₂ by direct diffusion (assisted by active abdominal pumping ventilation in larger/more active insects) without hemolymph (insect “blood”) playing any significant role in gas transport at all — a structural point worth stating explicitly, since it is a common exam trap to assume all animals with an open circulatory system must transport gases in that circulatory fluid. This direct-diffusion strategy is only viable at small body scale, since diffusion distance limits how deep the tracheal network can effectively reach — a structural constraint on maximum insect body size.

Source: ResearchGate, fig. 9

Diving Physiology: The Dive Reflex

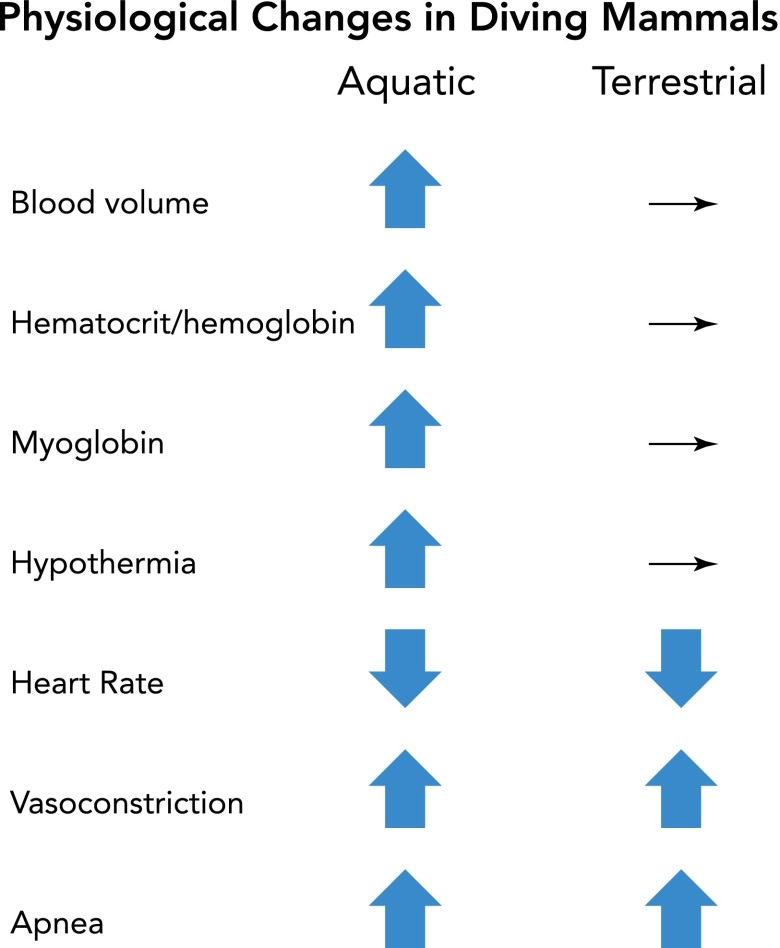

Breath-hold diving mammals (seals, whales) and diving birds rely on a coordinated mammalian dive reflex, triggered primarily by water contacting the face/nasal passages: immediate bradycardia (heart rate drops sharply, reducing overall O₂ consumption), and selective peripheral vasoconstriction that shunts blood flow away from non-essential tissue (skin, digestive organs, skeletal muscle) toward the brain and heart specifically — prioritizing O₂ delivery to the organs least tolerant of hypoxia. Skeletal muscle, receiving reduced blood flow during a dive, relies heavily on its own myoglobin stores (a single-subunit O₂-binding protein structurally related to but distinct from hemoglobin — see Respiratory Physiology for hemoglobin’s cooperative binding — with a higher O₂ affinity than hemoglobin, allowing myoglobin to extract and store O₂ from blood for local use during the dive and tolerate the resulting anaerobic glycolysis/lactate buildup once those local stores are depleted) rather than continuous circulatory O₂ delivery during the dive itself.

Source: PMC (National Center for Biotechnology Information), article PMC3768097

High-Altitude Adaptation

Chronic exposure to the lower atmospheric PO₂ at high altitude triggers both short-term and long-term physiological adjustments: hyperventilation (peripheral chemoreceptor-driven, see Respiratory Physiology for the peripheral chemoreceptor mechanism, which becomes a dominant ventilatory driver specifically at the significantly lowered PO₂ altitude provides) and increased erythropoietin (EPO) release from the kidney, driving increased red blood cell production and raising blood O₂-carrying capacity over a longer (days-to-weeks) acclimatization timescale. Some high-altitude specialist species carry a further, genetically fixed structural adaptation: bar-headed geese (which migrate over the Himalayas) express a hemoglobin variant with intrinsically higher O₂ affinity than lowland bird hemoglobin, allowing effective O₂ loading even at the very low PO₂ of high-altitude air — a permanent molecular solution layered on top of the acclimatization mechanisms available to any individual short-term.

Comparative Structures

Common Exam Questions

• “Explain why countercurrent gas exchange in fish gills achieves higher O₂ extraction efficiency than the tidal ventilation used by mammalian lungs.”
• “Explain why a single volume of air requires two full respiratory cycles to pass completely through a bird’s respiratory system, and why bird gas exchange is still more efficient than mammalian tidal ventilation despite this added complexity.”
• “Explain why insects do not rely on hemolymph for gas transport, and identify the structural feature that limits maximum insect body size as a consequence.”
• “Describe the mammalian dive reflex and explain why blood flow is redirected specifically toward the brain and heart during a dive.”
• “Explain the difference between short-term (ventilatory/EPO-driven) and long-term evolutionary (hemoglobin variant) adaptations to high altitude, using the bar-headed goose as the example of the latter.”

Visual Reference

Interactive

• Countercurrent vs. co-current gas exchange comparator (Plotly) — two side-by-side O₂-partial-pressure-vs-position graphs (blood and water/air traces) for a countercurrent and a co-current arrangement, showing the countercurrent case maintaining a diffusion gradient along the full exchange length while the co-current case’s gradient collapses partway along — directly demonstrates why direction of flow matters, extending the same countercurrent logic used for the kidney and limb heat exchange elsewhere in this section.

• Dive reflex trigger simulator (SVG/JS) — a diagram of a diving mammal with a “submerge” button; triggering it animates heart rate dropping and blood flow redirecting away from skin/gut/muscle toward brain/heart in real time, with a running blood-O₂-conservation estimate — makes the reflex’s protective logic direct and interactive rather than a described list of effects.

Static (placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here — still outstanding: a bar-headed goose hemoglobin O₂ affinity curve vs. lowland bird hemoglobin)

Practice Problems

1. Explain, using a diagram, why countercurrent flow allows fish gills to extract a much higher percentage of available O₂ than mammalian lungs extract from inhaled air.
2. A single breath of air takes two full respiratory cycles to pass through a bird’s system. Explain why this does not make bird respiration less efficient than mammalian respiration.
3. Explain why an insect’s maximum body size is constrained by its respiratory system’s reliance on direct diffusion.
4. During a dive, why does skeletal muscle continue to function despite reduced blood flow to it?
5. Distinguish an individual’s short-term physiological response to moving to high altitude from a bar-headed goose’s evolved hemoglobin adaptation, in terms of timescale and mechanism.
