Comparative Osmoregulation & Excretion

Overview

The Homeostasis & Osmoregulation page established the general mechanisms (feedback control, nitrogenous waste trade-offs, the countercurrent multiplier, ADH/RAAS) and previewed the specific osmoregulatory challenge each environment poses. This page works through the specific structural/physiological solution each major group has evolved to its own challenge — a heavily tested IBO topic precisely because each solution is a distinct, nameable mechanism rather than a variation on one theme.

Key Concepts

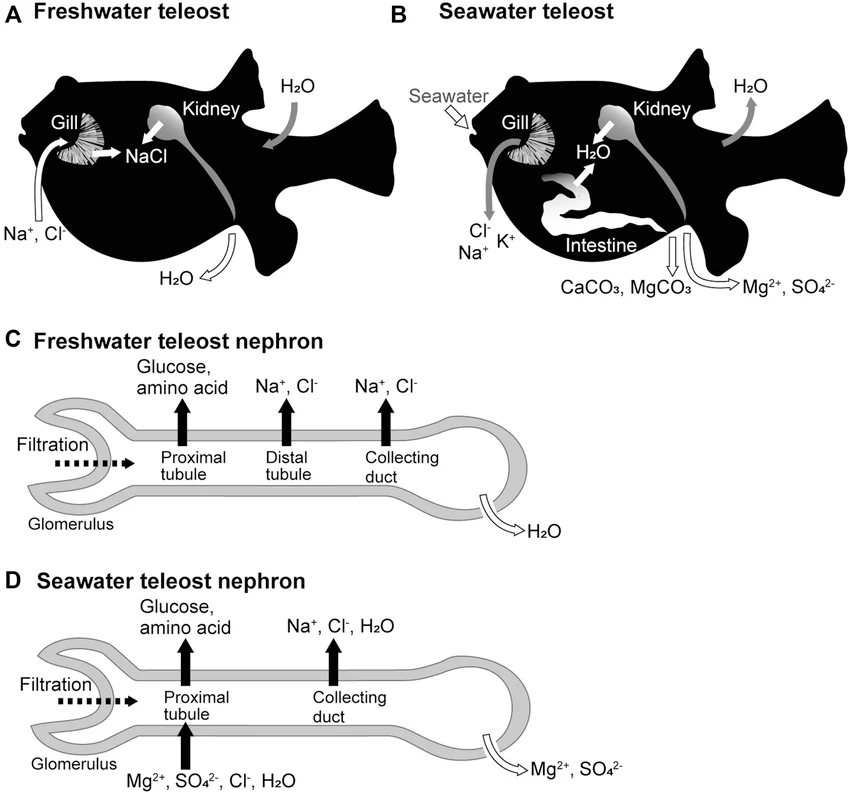

Marine Bony Fish: Hypoosmotic to Seawater

A marine bony fish’s blood is far less concentrated than seawater, so it continuously loses water osmotically across the gills and gains ions by diffusion. Its solution: drink seawater continuously (the only way to replace lost water despite the seawater itself being hyperosmotic) and actively excrete the excess ions this intake brings in via specialized chloride cells in the gill epithelium, which actively pump Cl⁻ out (Na⁺ following passively/electrically) against a steep concentration gradient — an energetically expensive solution, but the only viable one given the fish cannot avoid gill-surface water loss to seawater.

Source: ResearchGate, fig. 1

Elasmobranchs: Urea Retention

Sharks and rays face the same hypoosmotic-to-seawater problem as bony fish but solve it with a fundamentally different strategy: rather than fighting the osmotic gradient, they raise their own blood osmolarity to near-seawater levels by retaining high concentrations of urea and trimethylamine oxide (TMAO) in the blood (TMAO specifically counteracts urea’s normally protein-destabilizing effect on enzyme structure, allowing the animal to tolerate urea concentrations that would denature proteins in most other vertebrates). Because blood osmolarity is now close to that of seawater, the osmotic gradient driving water loss is largely eliminated — a structurally opposite solution to the bony fish’s, despite an identical starting environmental challenge, and a frequently tested point of contrast.

Freshwater Fish: Hyperosmotic to Fresh Water

A freshwater fish’s blood is far more concentrated than its surroundings, so it continuously gains water osmotically and loses ions by diffusion — the reverse problem to marine bony fish. Its solution: never drink (would worsen the water-gain problem), excrete large volumes of dilute urine (kidneys with numerous, well-developed glomeruli built for high filtration rate rather than concentration), and actively absorb ions via the same gill chloride cells used by marine fish, but running in reverse (actively importing, not exporting, Na⁺/Cl⁻ from the dilute surrounding water).

Amphibians: Semi-Permeable Skin

Amphibian skin (see Fish & Amphibian Anatomy) is highly permeable to water, tying an amphibian’s water balance tightly to its immediate environment — a direct structural constraint on habitat range. Many amphibians produce dilute urine and actively reabsorb ions across the skin itself (not just the kidney), and terrestrial/desert-adapted species (e.g., spadefoot toads) survive extended dry periods via estivation (a dormant, metabolically depressed state, the warm/dry-season counterpart to hibernation, detailed on the Comparative Thermoregulation page) combined with a large urinary bladder that stores dilute urine as a water reserve to draw on osmotically during dormancy.

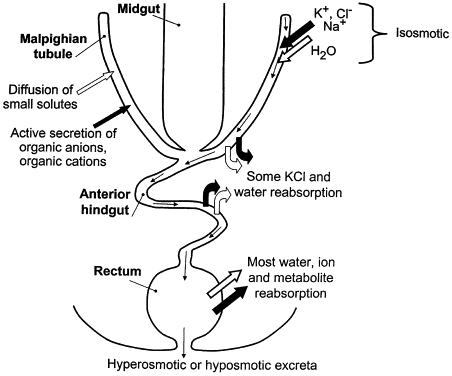

Insects: Malpighian Tubules

Insects use an excretory system structurally unrelated to the vertebrate nephron: blind-ended Malpighian tubules project into the hemocoel (open circulatory body cavity) and actively secrete K⁺ (and with it, by electrochemical coupling, water and nitrogenous waste, chiefly uric acid — see Homeostasis & Osmoregulation for why uric acid specifically suits water-limited/flying animals) into the tubule lumen; this fluid drains into the hindgut, where the rectum actively reabsorbs most of the water and ions, leaving a nearly dry uric acid paste for excretion. This two-stage secretion-then-reabsorption strategy (rather than the vertebrate filtration-then-reabsorption strategy) achieves the same functional outcome — concentrated waste, conserved water — via a structurally independent evolutionary solution, a strong example of convergent function without homologous structure.

Source: ScienceDirect (book chapter, Advances in Insect Physiology series)

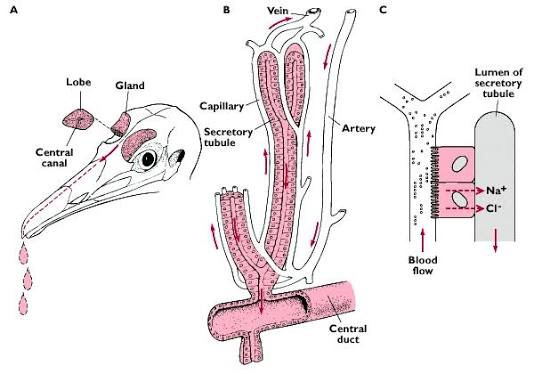

Marine Birds and Reptiles: Salt Glands

Marine birds and reptiles (see Reptile & Bird Anatomy) drink seawater but, unlike marine bony fish, lack gill chloride cells to excrete the resulting ion load, and their kidneys (producing uric-acid-based, water-conserving waste, per the general trade-off on the Homeostasis page) are not well suited to rapidly excreting large ion loads either. Their solution is a dedicated nasal (supraorbital) salt gland, structurally and functionally independent of the kidney, that actively secretes a highly concentrated NaCl solution (well above seawater concentration) via a countercurrent-multiplier-like mechanism directly analogous in principle, though separate in structure, to the mammalian kidney’s own countercurrent multiplier (see Homeostasis & Osmoregulation) — another case of convergent mechanism (steep counter-flow concentration gradients) solving analogous problems in structurally distinct organs.

Source: avesbiology.com

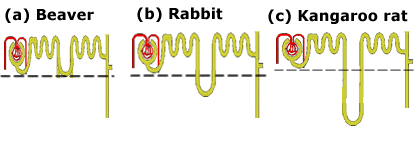

Desert Mammals: The Kangaroo Rat

The kangaroo rat survives with no drinking water at all, relying entirely on metabolic water (water produced as a byproduct of cellular respiration) and extreme water conservation: an unusually long loop of Henle (relative to body size) extends deep into the renal medulla, building a far steeper countercurrent-multiplier osmotic gradient (see Homeostasis & Osmoregulation) than in most mammals, allowing production of extraordinarily concentrated urine; nocturnal, burrow-dwelling behavior avoids daytime heat and its associated evaporative water loss; and even exhaled air is cooled in the nasal passages before exit, condensing and reclaiming some water vapor that would otherwise be lost in every breath. This is a direct, structurally quantifiable extension (loop of Henle length) of the same countercurrent mechanism already covered in general form.

Source: iitianacademy.com (IB DP Biology study notes)

Comparative Structures

Common Exam Questions

• “Compare the osmoregulatory strategies of marine bony fish and elasmobranchs, both facing an identical hypoosmotic-to-seawater challenge, and explain why their solutions are structurally opposite.”
• “Explain why freshwater fish never drink while marine bony fish must drink continuously.”
• “Describe the two-stage mechanism of insect Malpighian tubule excretion and explain why it is considered functionally convergent with, but structurally independent of, the vertebrate nephron.”
• “Explain why marine birds require a nasal salt gland despite having functional kidneys.”
• “Explain how the kangaroo rat’s loop of Henle length relates to its ability to survive without drinking water, referencing the countercurrent multiplier mechanism.”

Visual Reference

Interactive

• Osmoregulation strategy selector (click-through SVG/JS) — selecting an animal (marine bony fish / elasmobranch / freshwater fish / insect / marine bird / desert mammal) animates that animal’s specific water/ion flow diagram (arrows showing gain/loss routes and the compensating active-transport mechanism), letting a student directly compare the marine-bony-fish and elasmobranch diagrams side by side to see the opposite-strategy contrast.

• Loop of Henle length comparator (SVG/JS, slider) — a slider adjusting relative loop-of-Henle length between a generic mammal and a kangaroo-rat-like profile, with a linked readout of maximum achievable urine concentration, directly visualizing the length-to-concentrating-power relationship introduced qualitatively above.

Static (placed inline in Key Concepts above, next to the concept each one illustrates, rather than collected here — no image was found for elasmobranch blood/seawater osmolarity; that comparison remains text-only)

Practice Problems

1. A marine bony fish and a freshwater fish are both placed in a mid-salinity brackish tank. Predict how each animal’s normal osmoregulatory behavior (drinking, urine volume) would need to change, if at all.
2. Explain why urea, which is toxic enough to require prompt excretion in mammals, can be tolerated at high concentration in elasmobranch blood.
3. Trace fluid movement through an insect excretory system from Malpighian tubule secretion to final uric acid excretion.
4. Explain why a marine bird’s kidney alone cannot solve the ion load created by drinking seawater, and what structure compensates.
5. Explain, referencing the countercurrent multiplier, why an elongated loop of Henle allows the kangaroo rat to produce more concentrated urine than a standard-length loop would.
